Definition: High Pressure refers to the force applied by a heat press to a substrate during the transfer process, typically falling within the range of 5-6 bar (72-87 psi). Since many manual heat presses lack a digital pressure gauge, “High Pressure” is functionally defined as the setting where the press requires significant physical effort to lock down, ensuring maximum contact and mechanical bonding between the transfer media and the garment.
Read more
Why It Matters: Impact and Use
In professional garment decoration, pressure is one of the three critical variables—alongside time and temperature—that determine the success of a transfer. Using High Pressure is a technical requirement for specific high-performance materials to ensure industrial-grade durability in the finished product.
- Troubleshooting Delamination: If a transfer peels after washing despite using the correct temperature, “insufficient pressure” is the most common culprit. High pressure ensures the adhesive “bites” into the fibers rather than just sitting on top.
- Mechanical Bonding: High pressure forces the liquefied adhesive or toner deep into the “valleys” of the fabric weave. This is especially vital for thick or textured fabrics like canvas, heavy cotton, or workwear.
- Opacity and Vibrancy: For “No-Weed” laser transfers like TheMagicTouch WOW Dark (7.8), high pressure is required during the “marriage” step (merging the 2 sheets) to ensure the coating transfers completely and evenly, preventing “speckling” in the final design.

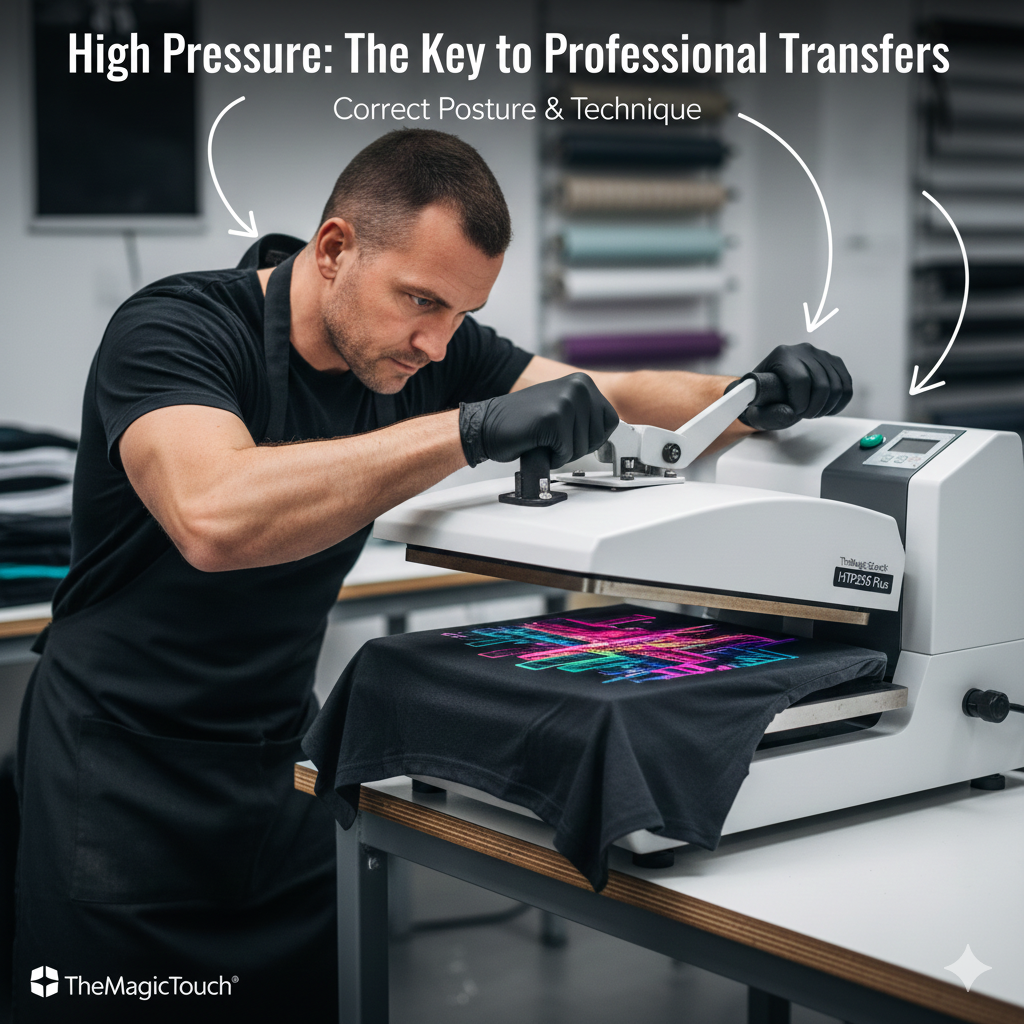

- Consistency Across the Platen: High-quality presses, such as the TheMagicTouch HTP256 Plus, are engineered to maintain high pressure evenly across the entire surface. Lower-quality presses may “bow” under high pressure, leading to the edges of the design peeling while the center holds. Applications demanding a high consistant pressure may fail or transfer insufficiently when a heat press with a lower maximum pressure is used.
Pressure Setting Guide
| Setting | Physical Feel | Common Applications |
| Low | Closes very easily with one hand. | Sublimation, MagiCut Puff HTV |
| Medium | Requires some resistance to lock down. | (HTV) Flex, most DTF applications |
| High | Requires two hands or significant effort to lock. | TheMagicTouch TTC 3.1, TheMagicTouch WOW Dark |
Frequently Asked Questions
How do I know if my heat press is set to High Pressure?
Without a digital gauge, High Pressure is reached when the press becomes difficult to close. You should feel significant resistance, and it should require a firm, two-handed push to lock the handle into place.
Can too much pressure damage my heat press?
Yes. While High Pressure is around 5-6 bar, you should never force the press beyond its structural limits. If you have to lean your entire body weight onto the handle to close it, you risk bending the platen or snapping the adjustment bolt.
Why does TheMagicTouch WOW 7.8 require High Pressure?
WOW 7.8 is a self-weeding transfer paper. High pressure is essential to ensure the adhesive from the B-paper bonds perfectly to the toner on the A-foil. Without high pressure, the transfer will be incomplete or lack durability.
Related terms
- Pneumatic Heat Press
- Interchangable Lower Heat Press Platens
- Heat Press Bottom Plates
