An Interchangeable Lower Platen is a modular base component of a heat press that can be swapped out for different sizes and shapes. While standard heat presses come with a large rectangular base (typically 38 x 38 cm or 40 x 50 cm), an interchangeable system allows the user to install smaller or specialized platens—such as those for sleeves, pockets, shoes, or baby clothes—to provide a flat, isolated pressing surface.
Read more
Why It Matters: Impact and Use
For professional decorators, an interchangeable platen system is a critical tool. It solves the technical challenge of “obstructions” (seams, buttons, zippers, and collars) that prevent even pressure and heat distribution.

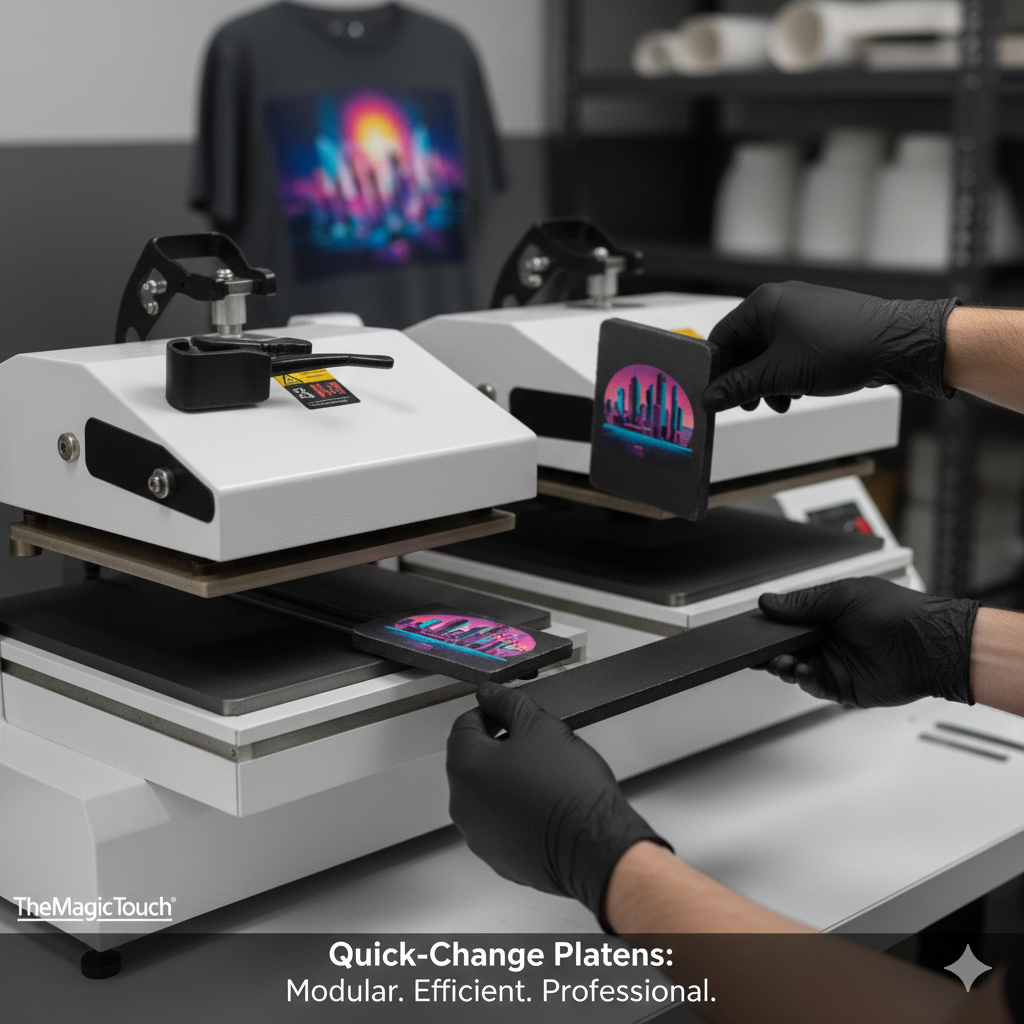

- Efficiency: High-quality presses, like TheMagicTouch HTP123Pro, feature “quick-change” mechanisms that allow operators to switch platens in seconds without tools, maintaining a high-speed production workflow.
- Overcoming Obstructions: When printing a polo shirt pocket or a baby onesie, seams and buttons often prevent the upper platen from making full contact with the transfer. A smaller, raised platen allows the rest of the garment to “hang off” the sides, ensuring only the print area receives the required High Pressure.
- Specialty Product Decoration: Modular platens expand your product range. With specialized attachments, you can professionally decorate:
- Sleeves & Leggings: Using long, narrow platens.
- Bags & Totes: Using small squares to avoid straps and hardware.
- Footwear: Using curved platens designed for sneakers.
- Preserving Garment Quality: By isolating only the area to be printed, you avoid “heat press marks” or scorching on the rest of the garment, which is common when pressing delicate synthetic fabrics on a full-sized plate.
All clamshell Heat Presses
Popular Platen Sizes & Their Uses
| Platen Size | Primary Application | Technical Benefit |
| 15 x 15 cm | Pockets, Breast Logos, Bag Tags. | Isolates the logo from seams and buttons. |
| 15 x 50 cm | Sleeves, Pant Legs, Socks. | Allows long garments to be threaded over the plate. |
| 10 x 10 cm | Baby clothes, Onesies. | Small enough to fit inside tiny neck openings. |
| Custom Shapes | Shoes, Caps, Umbrellas. | Matches the geometry of non-flat items. |
Frequently Asked Questions
Why do I need a smaller platen for baby clothes?
Baby clothes have thick seams around the neck and legs. If you use a large platen, the heat press will rest on the seams, leaving a ‘gap’ over the fabric where your design is. A small platen fits inside the seams, ensuring the heat and pressure are applied directly to the transfer.
Can I use interchangeable platens on any heat press?
No. Only specific ‘modular’ heat presses, such as TheMagicTouch HTP123Pro or HTP256 Plus, are designed with a quick-release base. Standard entry-level presses usually have a fixed lower platen that cannot be removed.
Do I need to adjust my pressure after changing the platen?
Yes. Because the surface area is smaller, the force of the press is concentrated over a smaller space. You must recalibrate your pressure setting to ensure you don’t crush the product or apply too much force.
