Graphtec Cutting Master 5

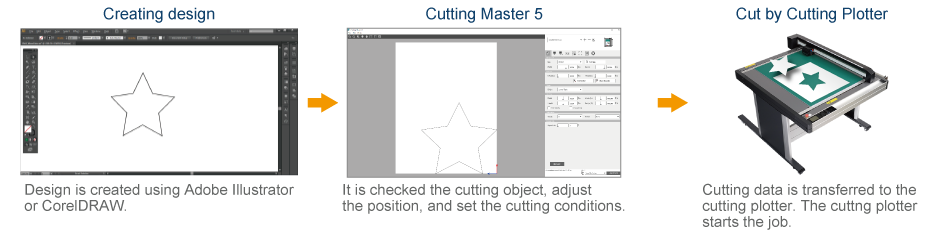

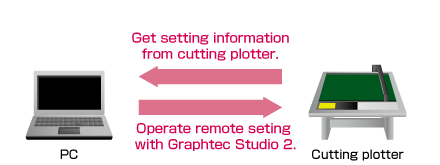

Synchronization function of cutting conditions

The cutting condition and main unit setting of cutting plotters can be set up on the software and synchronized. The settings can also be saved, so that users of multiple PCs can cut smoothly under the same condition.

Compatible models : FC9000 / CE8000 / FCX4000 / FCX2000 / CE7000 / CE6000 PLUS / FC8600

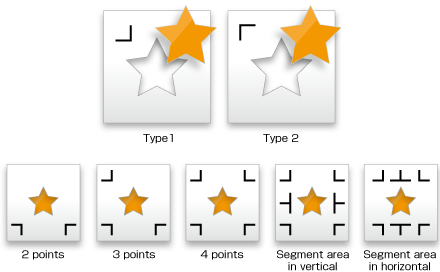

Creating the registration marks

The registration marks can be added into the arts board of the design application software. It can be selected from 10 patterns according to the design object size and the precision of axis alignment in the Print & Cut applications.

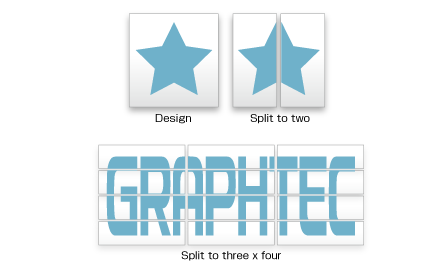

Tiling (split the object)

The cutting object can be split into smaller tiles. When the object needs to be placed to the surface made by multiple panels or is larger than the width of the media, the object can be split to size for fit it.

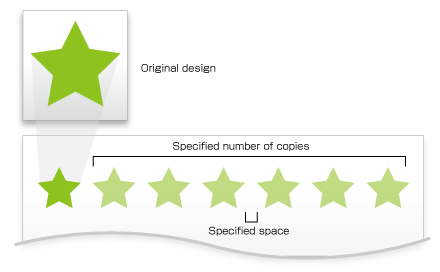

Matrix copy

It is used for creating multiple copies of the same object. The object is copied in specified matrix condition.

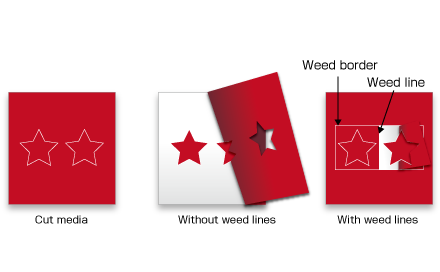

Weed lines and border

The border line and weeding lines can be added around the cutting object automatically and then it is cut. It makes easier to remove the excess material from the media.

Tool assignment

Graphtec Studio 2 is able to assign the tool condition to the each color or the layer. The settings of tool condition as force, speed, quality (acceleration) and others can be set for the each color or the layer. It can be performed in a single job by process of different types

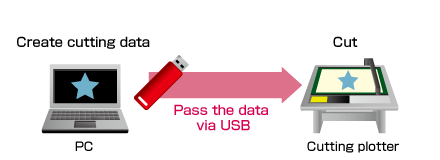

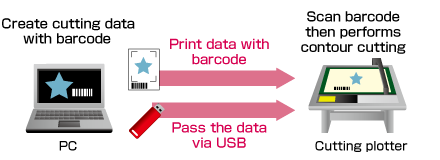

Offline operation using the USB flash memory

Plot data is created from the design by using Graphtec Studio 2, then it is saved to USB flash memory. The plot data file can be selected from the USB on the plotter, then cutting is performed. This simplified work-flow enables users to operate without a computer.

Compatible models : FC9000 / CE8000 / FCX4000 / FCX2000 / CE7000 / CE LITE

Offline operation using the USB flash memory

Plot data is created from the design by using Graphtec Studio 2, then it is saved to USB flash memory. The plot data file can be selected from the USB on the plotter, then cutting is performed. This simplified work-flow enables users to operate without a computer.

• The USB flash memory format only supports FAT32.
  Please note that NTFS and exFAT are not supported.

Compatible models : FC9000 / CE8000 / FCX4000 / FCX2000 / CE7000 / CE LITE

Copy of data with registration marks

After data is sent the first time, it can be copied multiple times without a PC.

Compatible models : FC9000 / CE8000 / FCX4000 / FCX2000 / CE7000 / CE6000 PLUS / CE LITE / FC8600

In the FC9000 / CE8000 / FCX2000 / FCX4000 / CE7000, the first four marks are scanned on the first sheet, and only the first mark in subsequent sheets. Graphtec Studio 2 is able to configure FCX2000 / FCX4000 to execute copy in this condition. This improves productivity by shorting scan detection time.

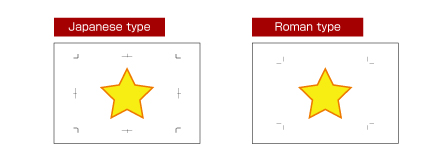

Supported by standard crop marks

Cutting is aligned to the printed graphic by printing the industry standard crop marks. Adding special marks with Graphtec software is not necessary. Cutting Master 5 is able to get information of crop mark from Adobe Illustrator and send it to FCX2000.

Compatible models : FC9000 / CE8000 / FCX4000 / FCX2000 / CE7000
