Roland VersaSTUDIO BN2-20A

Name: Roland VersaSTUDIO BN2-20A - TheMagicTouch
SKU: BN2-20A
Price: 5900.00 EUR
Availability: InStock

€5.900,⁰⁰
You save per piece

SKU: BN2-20A

In stock

Order by 4:00 PM for Next-Day Delivery*
Pricing Agreements for Every Customer
Flexible & Secure Payment Options
Rated 4.7/5.0 for Friendly, Expert Service
35+ Years of Proven Industry Expertise

Beschreibung

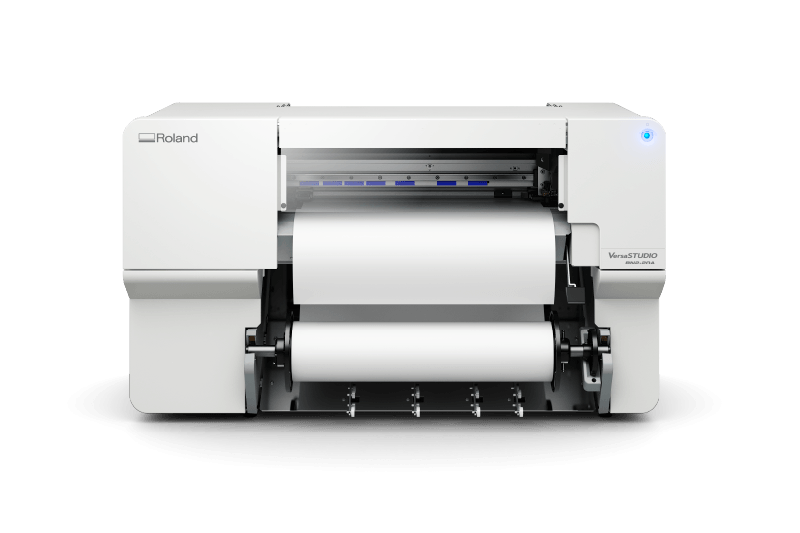

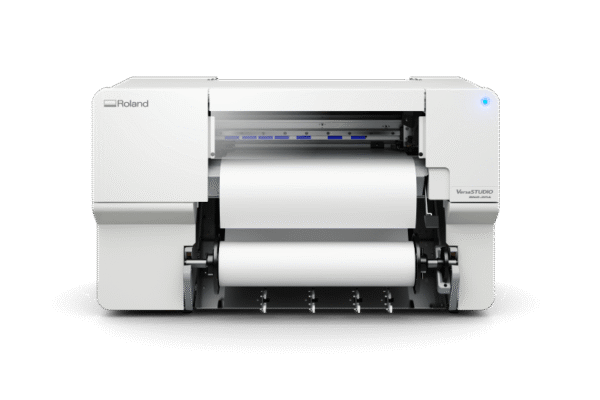

The Roland BN2-20 is a compact and user-friendly desktop printer/cutter, ideal for small businesses and startups, offering professional-quality print-and-cut graphics. Slightly higher in price due to added versatility.It combines high-definition printing with integrated contour cutting, allowing seamless workflows for complex shapes and maximizing productivity. The printers come with FlexiDESIGNER VersaSTUDIO Edition software and VersaWorks 6, ensuring precise color management, optimized media profiles, and easy production. Designed for efficiency, the BN2 features automatic media handling, sensor adjustments, and a new sheet-cutting function, making operation straightforward even for inexperienced users. Additionally, eco-solvent inks provide excellent outdoor durability, and the Roland DG Connect app allows real-time monitoring to reduce downtime and improve workflow efficiency.

Key Features

Integrated print-and-cut functionality.
High-definition printing and precise contour cutting.
FlexiDESIGNER VersaSTUDIO Edition + VersaWorks 6 software.
Automatic media handling, sensor adjustments, and sheet-cutting.
Quick, four-step direct-to-film workflow without masking or element removal.
Eco-solvent inks, in cyan, magenta, yellow, black, with excellent outdoor durability.

Many applications

Posters, Banners & sign materials.
Printable heat transfer vinyls, to decorate textiles and promotional items.
Printable stickers, to decorate windows, walls, floor and other signage.

The BN2-20A inks and installation are not included; we are happy to provide a customized quote tailored to your needs. We recommend booking a free appointment online or in our showroom.

Specifications

Gewicht	62 kg
Größe	106,9 × 61,7 × 62,2 cm
Printer Method	Piezo ink-jet method
Media	Width: 150 to 515 mm Thickness: Maximum 1.0 mm with liner, for printing Maximum 0.4 mm with liner and 0.22 mm without liner, for cutting Roll outer diameter: Maximum 150 mm Roll weight: Maximum 6 kg
Core diameter	76.2 mm or 50.8 mm
Printing/cutting width (*1)	Maximum 480 mm
Ink	Type: 220-ml cartridge Colors: Cyan, Magenta, Yellow, Black
Printing resolution (dots per inch)	Maximum 1,440 dpi
Cutting speed	10 to 150 mm/s
Blade force (*2)	30 to 500 gf
Blade	Type: Roland CAMM-1 series blade Offset: 0.000 to 1.500 mm
Software resolution (when cutting)	0.025 mm/step
Media heating system (*3)	Print heater set temperature:30 to 35 °C Dryer set temperature: 30 to 38 °C
Connectivity	Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function	Automatic sleep feature
Rated input	100-240 Va.c. 50/60 Hz 2.1 A
Power consumption	During operation: Approx.185 W Sleep mode: Approx.27W
Acoustic noise level	During operation: 62 dB (A) or less During standby: 60 dB (A) or less
Dimensions (Width x Depth x Height)	1,069 mm × 617 mm × 622 mm
Weight	62 kg
Environment	During operation (*4): 20 to 32 °C, Humidity: 35 to 80 % RH (no condensation) Not operating: 5 to 40 °C Humidity: 20 to 80 % RH (no condensation)
Included items	Power cord, media holders, replacement blade for separating knife, User's Manual, Software (FlexiDESIGNER VersaSTUDIO Edition, VersaWorks, Roland DG Connect), etc.

FAQ

1. Wat is inbegrepen bij de Roland VersaSTUDIO BN2-20A?

Netsnoer
Media houders
Vervangmes voor scheidingsmes
Gebruikershandleiding
Software (FlexiDESIGNER VersaSTUDIO Edition
VersaWorks, Roland DG Connect)

2. Wat kunt u allemaal doen met de VersaSTUDIO?

Met professionele en gebruiksvriendelijke oplossingen van Roland DG kunt u uw ontwerpen op bijna elk product printen en in uw vrije tijd een winstgevend bedrijf maken.

3. Hoe zit het met garantie?

Ga met een gerust hart verder met uw bedrijf dankzij de befaamde post-sales-service van Roland DG. De garanties van Roland DG Care dekken u voor veel meer dan alleen het onderhoud van uw machine. In de fabriek opgeleide servicemonteurs. Snelle installatie en eerste ingebruikname. Deskundig advies en opleiding.

4. Waarom kiezen voor Roland DG?

Mensen kopen Roland DG-apparatuur omdat ze weten dat het zal doen wat het moet doen – en meer. Onze missie is om de beste te zijn, niet de grootste, en daarom zijn onze oplossingen de meest betrouwbare in de industrie. Meer dan 40 jaar van betrouwbare technische uitmuntendheid. Robuuste, flexibele technologie en herhaalbare resultaten. Ongeëvenaarde service en ondersteuning na verkoop.
