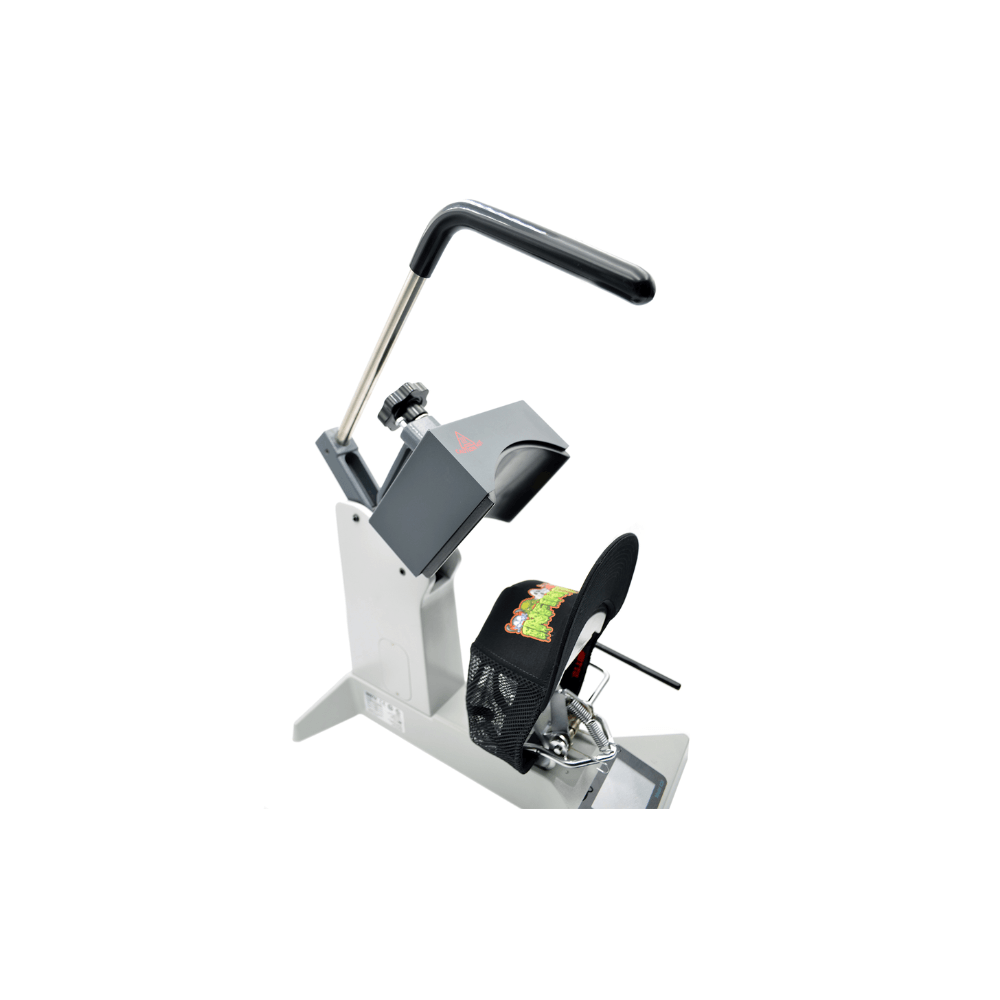

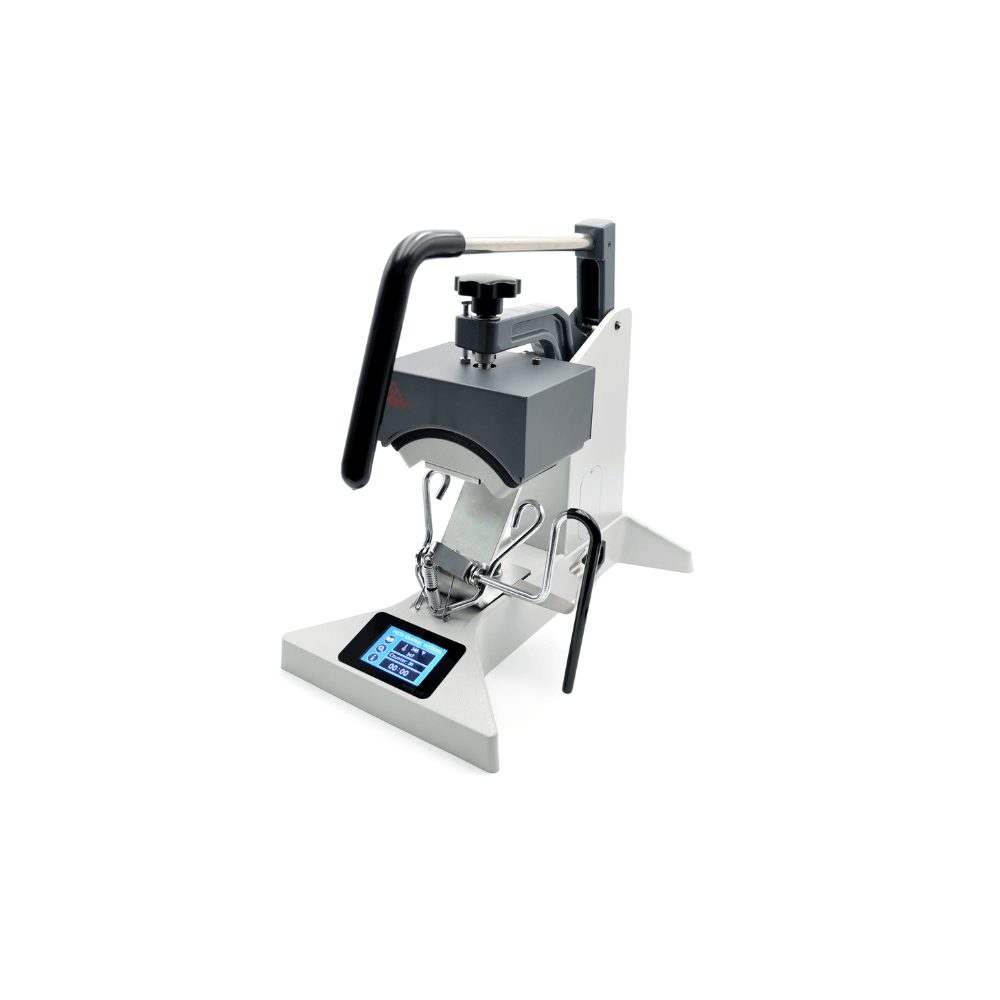

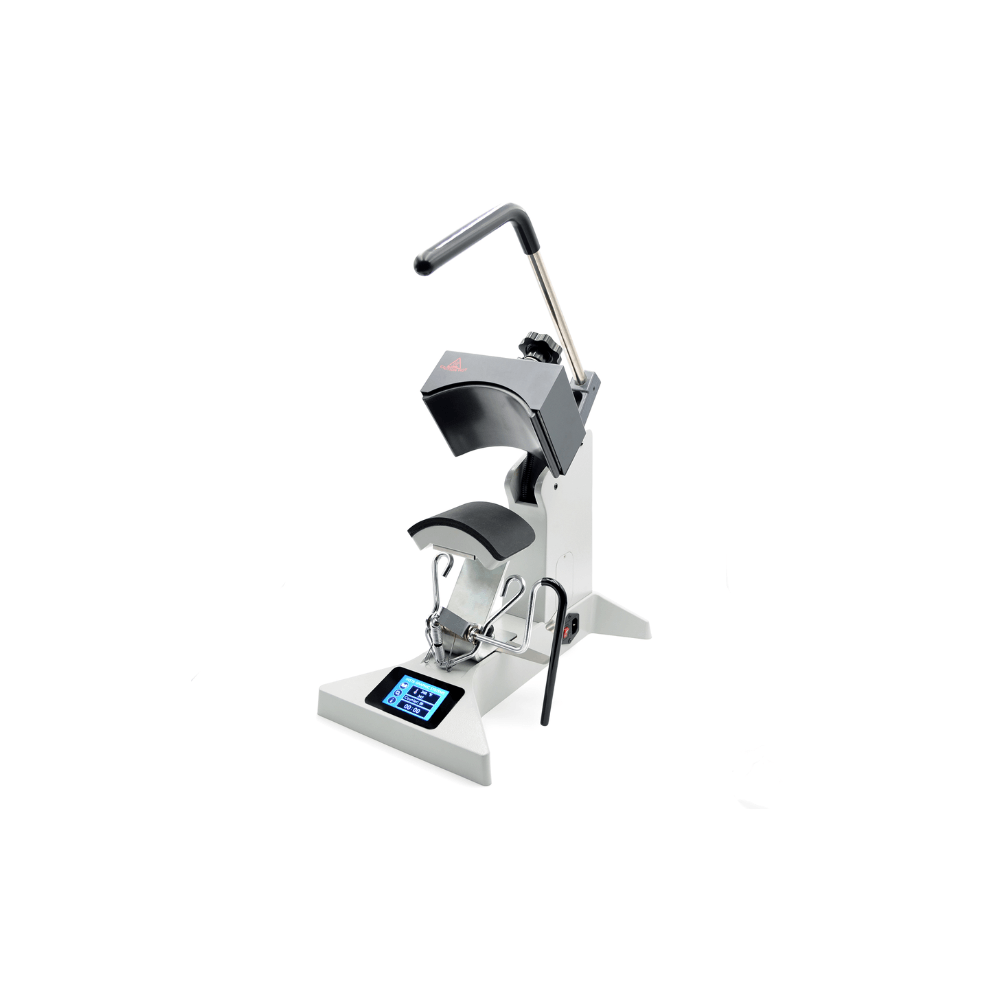

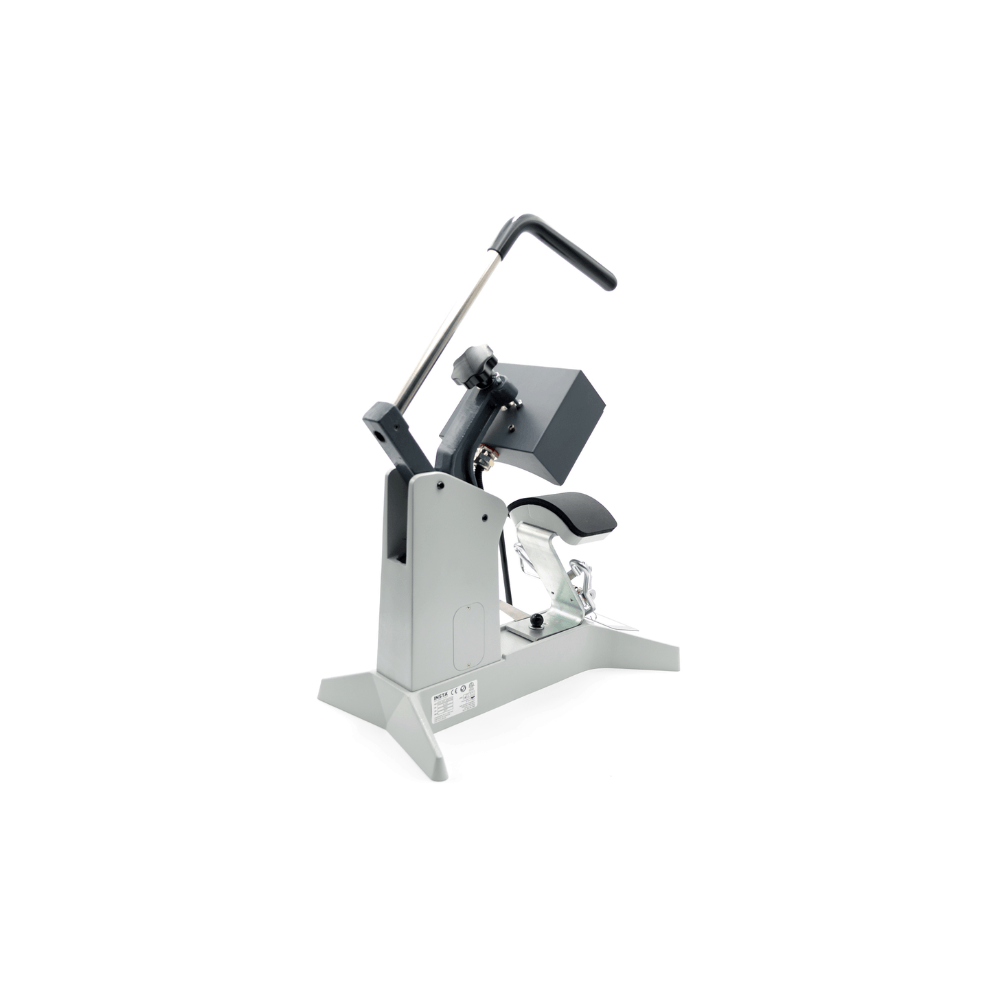

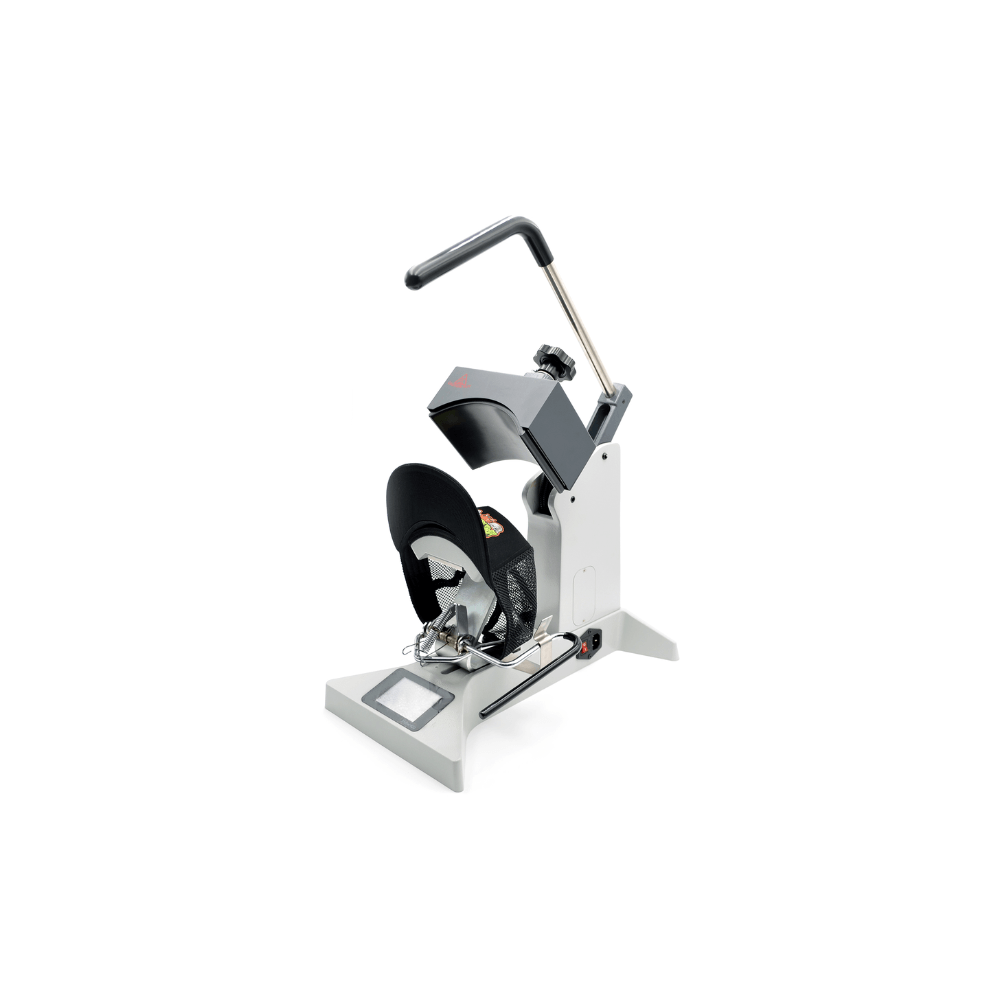

Insta HTP420 Cap Press

Description

This machine not only features Insta’s world-renowned platens with the most even heat and pressure in the industry, but it also includes a digital, touch-screen controller where you can save multiple presets to quickly switch between different applications. The 420 Heat Press has also proven to be an effective tool for printing logos and back-neck labels onto flat garments. Its portable, compact design and quiet operation make this heat press perfect for use in a home, retail, or production environment.

Quality you can count on

Insta’s Model 420 has been strategically designed to generate & evenly distribute tremendous pressure throughout the entire platen. Its heating element heats the metal from within, which produces constant and long-lasting heat. A successful heat transfer application requires 3 key elements to work in tandem: time, temperature, and pressure. The 420 brings those elements together in perfect harmony to achieve phenomenal results every time.

Advantages

Curved Upper & Lower Platens

The Model 420’s curved platens are perfectly molded to mirror the curves of a hat & are designed for the application of heat transfers onto cap brims & bills.

Cap Hold Down Mechanism

Its strategically designed cap hold down mechanism snaps into place to hold the body of the hat taught for hassle-free application, and ability to slide the lower platen for different cap configurations.

Over the Center Pressure Distribution

The Model 420’s pressure source is strategically placed over the center of its upper platen and uses struts to drive that pressure out to all corners. The result is an even and heavy duty distribution of pressure that is unmatched by other heat presses in the market today.

Touchscreen Digital Controller with Five Presets

Integrated digital touchscreen controller with five presets features controls for time, temperature and auto-off.

This Machine is ideal for the applications below

• Heat Transfers
• DTF Transfers
• White Toner Paper
• Sublimation
• Vinyl
• DTG
• Contact Insta if you have questions about your specific application

Solid construction

Get the Best Return on Your Investment with the Insta 420! Crafted from durable cast metal, this machine offers exceptional strength and resilience, designed to endure heavy use without warping or bending. The Insta 420 is built to last for years with proper care. Upgrade to an Insta 420 – you’ll be glad you did!

Operator benefits

Portable – Compact easy to move & locate in small spaces.

Cap Hold Down Mechanism – Its strategically designed cap hold down mechanism snaps into place to hold the body of the hat taught for hassle-free application, and ability to slide the lower platen for different cap configurations.

Working space dimensions

Width: 11” (27.94 cm)
Length: 18” (45.72 cm)
Height: 22” (55.88 cm)
Power: 120 volt – 400 Watts, 3.4 Amps
230 volt – 400 Watts, 1.7 Amps
Shipping Weight: 36 lbs.

Features

4.5” x 6.75” upper platen and 3.25” x 6.75” lower platen
Integrated touchscreen and five presets controller which features controls for time,
temperature (Fahrenheit or Centigrade) & auto-off
Curved Platen Design – hats are a breeze!
Made of cast aluminum for maximum durability
Strategically designed cap hold-down device
Portable compact design
Etl, CuL & CE approved. RoHS/WEE compliant
Warranty – Lifetime warranty on the upper heating element, 1 year on parts & 90 days
on labor
