Roland VersaSTUDIO BY-20

Name: Roland VersaSTUDIO BY-20 - TheMagicTouch
SKU: 510500
Price: 7990.00 EUR
Availability: InStock
Rating: 4.67 (3 reviews)

4.67 out of 5

(3 customer reviews)

€7.990,⁰⁰
You save per piece

SKU: 510500

On request

Order by 4:00 PM for Next-Day Delivery*
Pricing Agreements for Every Customer
Flexible & Secure Payment Options
Rated 4.7/5.0 for Friendly, Expert Service
35+ Years of Proven Industry Expertise

Description

The Roland VersaSTUDIO BY-20 is an easy-to-use, and compact desktop DTF printer designed for creating vibrant, detailed graphics on clothing and accessories. It is ideal for beginners or businesses looking to expand their product range, allowing personalized T-shirts, sportswear, tote bags, and more. Its integrated contour cutting function enables production of heat transfer graphics, letters, and numbers directly from sheets, combining printing and cutting in one device. The BY-20 supports optimized print modes for faster productivity and can be integrated with DTF powder shakers and heating units for automated workflows. The direct-to-film process is quick and simple, requiring no masking or element removal, making it a versatile solution for custom apparel production.

Key Features

Prints vibrant, detailed graphics transferable to various fabrics.
Easy-to-use, compact, and affordable DTF printer.
Integrated sheet-fed contour cutting for heat transfer graphics.
Optimized print modes for higher productivity.
Quick, four-step direct-to-film workflow without masking or element removal.
The Roland VersaSTUDIO BY-20 comes with a one-year standard warranty.

The BY-20 inks, film, powder, and installation are not included; we are happy to provide a customized quote tailored to your needs. We recommend booking a free appointment online or in our showroom.

Specifications

Weight	50 kg
Dimensions	120 × 80 × 80 cm
Printing Method	Piezo ink-jet method
Media	Width: 5.91 to 20.2 in. (150 to 515 mm) Thickness: Maximum 39.3 mil (1.0 mm) with liner, for printing Maximum 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner, for cutting Roll outer diameter: Maximum 5.9 in. (150 mm) Roll weight: Maximum 13.2 lb. (6 kg) Core diameter: 3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing/cutting width	Maximum 18.89 in. (480 mm)

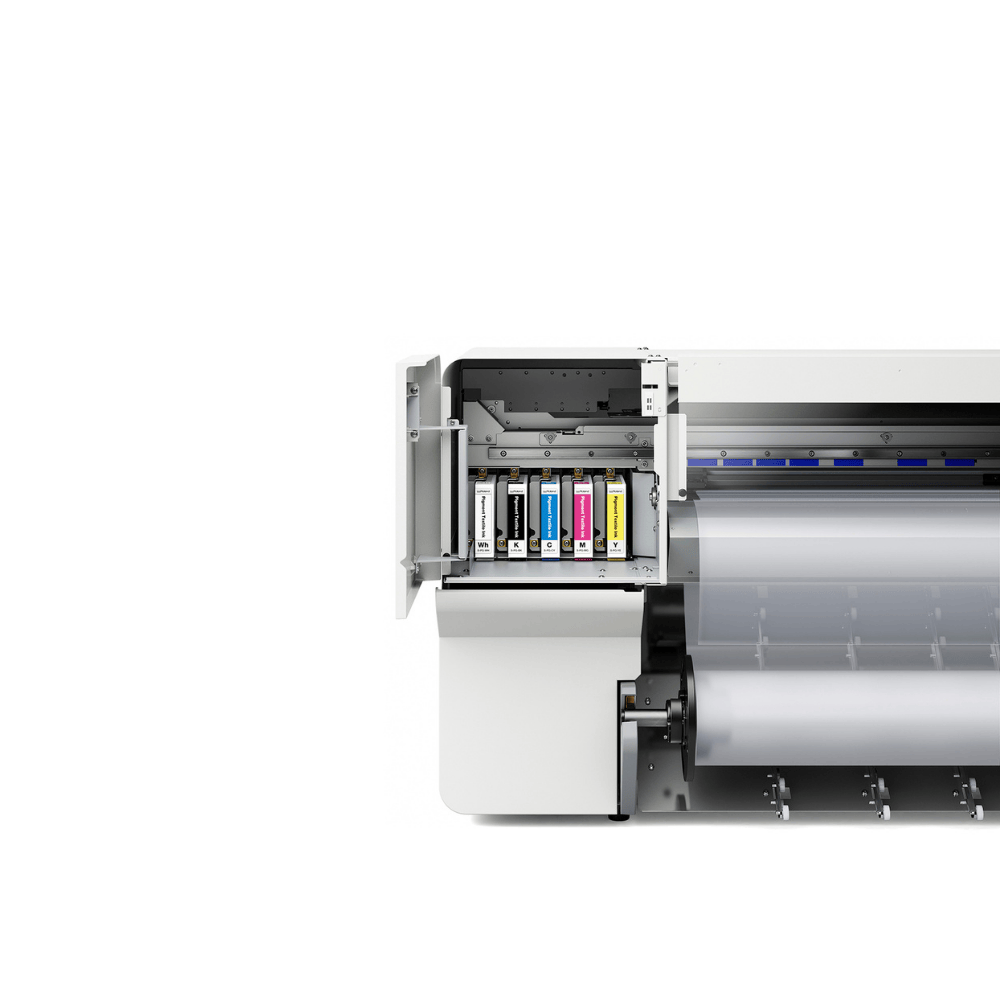

Inkt	Type: 220-ml cartridge Colors: Cyan, Magenta, Yellow, Black, White
Printing resolution (dots per inch)	Maximum 1,440 dpi
Cutting speed	0.39 to 5.9 in/s (10 to 150 mm/s)
Blade force	30 to 500 gf
Blade	Type: Roland CAMM-1 series blade Offset: 0.000 to 1.500 mm (0.0 to 59 mil)
Software resolution (when cutting)	0.025 mm/step (0.98 mil/step)
Media heating system	Print heater set temperature: 86 to 95 °F (30 to 35 °C) Dryer set temperature: 86 to 100.4 °F (30 to 38 °C)
Connectivity	Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function	Automatic sleep feature
Rated input	100-240 Va.c. 50/60 Hz 2.1 A
Power consumption	During operation: Approx. 185 W Sleep mode: Approx. 27W
Acoustic noise level	During operation: 62 dB (A) or less During standby: 60 dB (A) or less
Dimensions (Width x Depth x Height)	42.1 in. × 24.3 in. × 24.5 in. (1,069 mm × 617 mm × 622 mm)
Weight	137 lb. (62 kg)
Environment	During operation: Temperature: 68 to 89.6 °F (20 to 32 °C) Humidity: 40 to 80 % RH (no condensation) Not operating: Temperature: 41 to 104 °F (5 to 40 °C) Humidity: 20 to 80 % RH (no condensation)
Included items	Dedicated stands, power cord, Media take-up unit, media holders, replacement blade for separating knife, User's Manual, Software (FlexiDESIGNER VersaSTUDIO Edition, VersaWorks, Roland DG Connect), etc.
