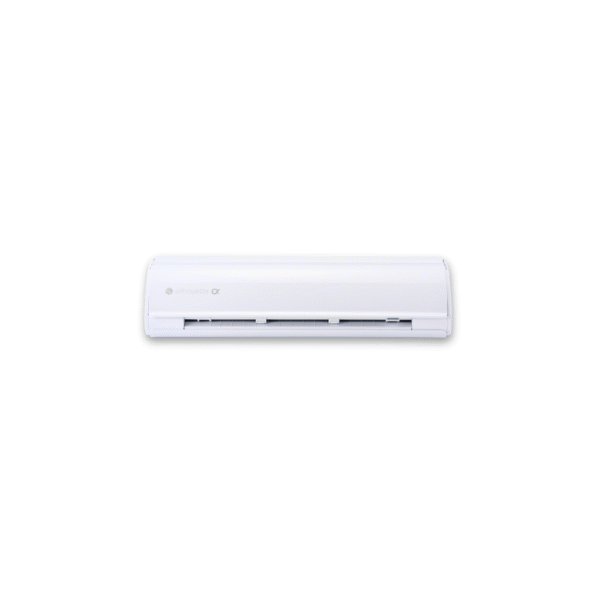

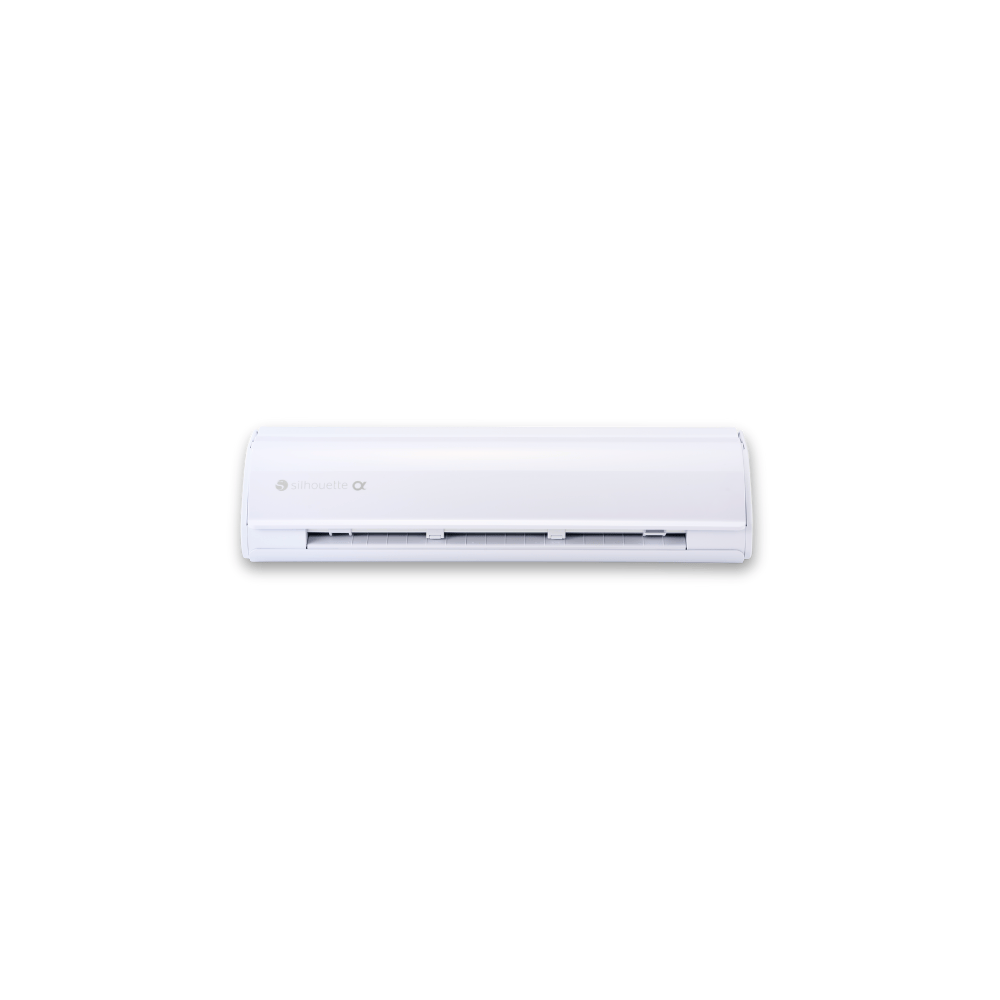

Silhouette CAMEO 5α Alpha

per piece

SKU: SILH-CAMEO-5A

On request

Description

The Silhouette CAMEO 5α is a versatile cutting machine for both beginners and experienced makers, capable of handling materials from heat transfer vinyl and cardstock to fabrics and foils, with a roll width of up to 305 mm. Its expandable loading width and Intelligent Path Technology ensure precise, tear-free cuts, even on ultra-thin paper. Beyond cutting and drawing, it supports embossing, foil stamping, and electrostatic mat projects. Quiet, reliable, and easy to use, it comes with Silhouette Studio® software for full design creation and access to the Silhouette Design Store.

Expand your creative horizons with the many possibilities of the CAMEO 5α.

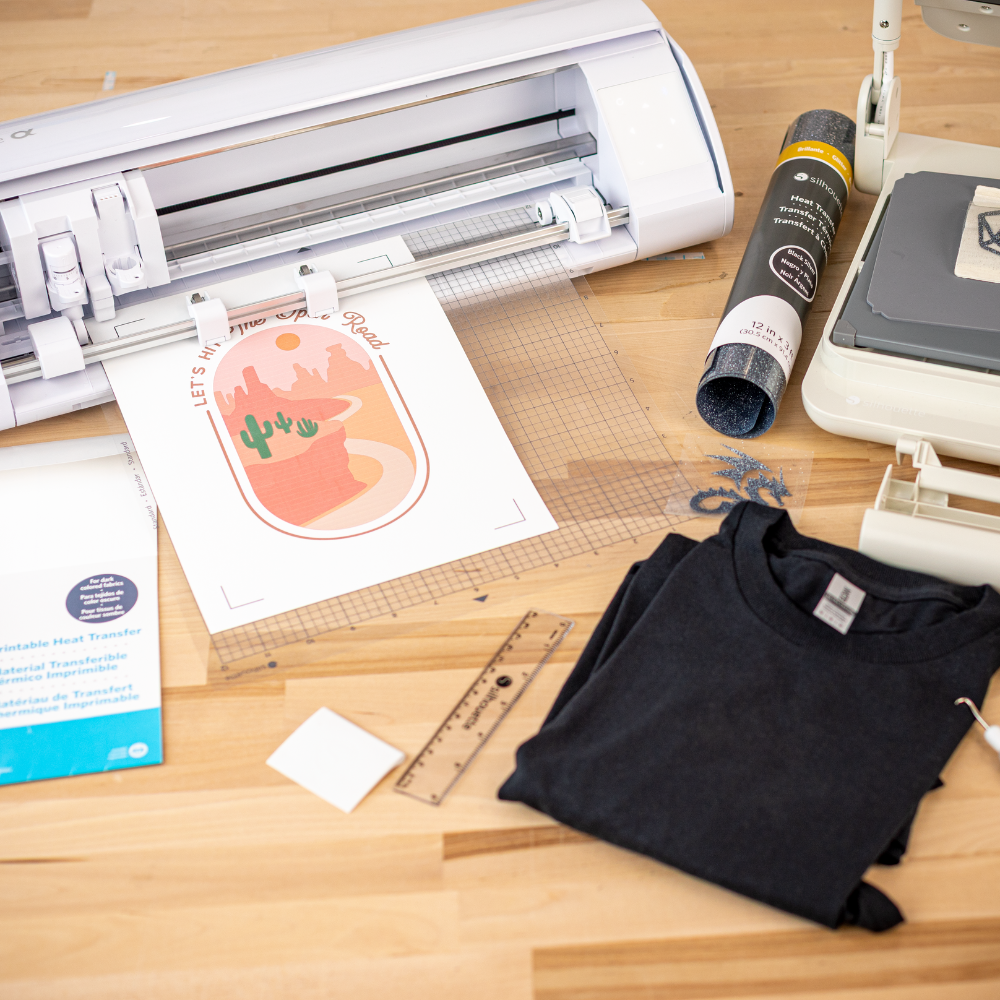

  • Heat transfer vinyls, make creative designs on textiles and promotionals items MagiCut series.

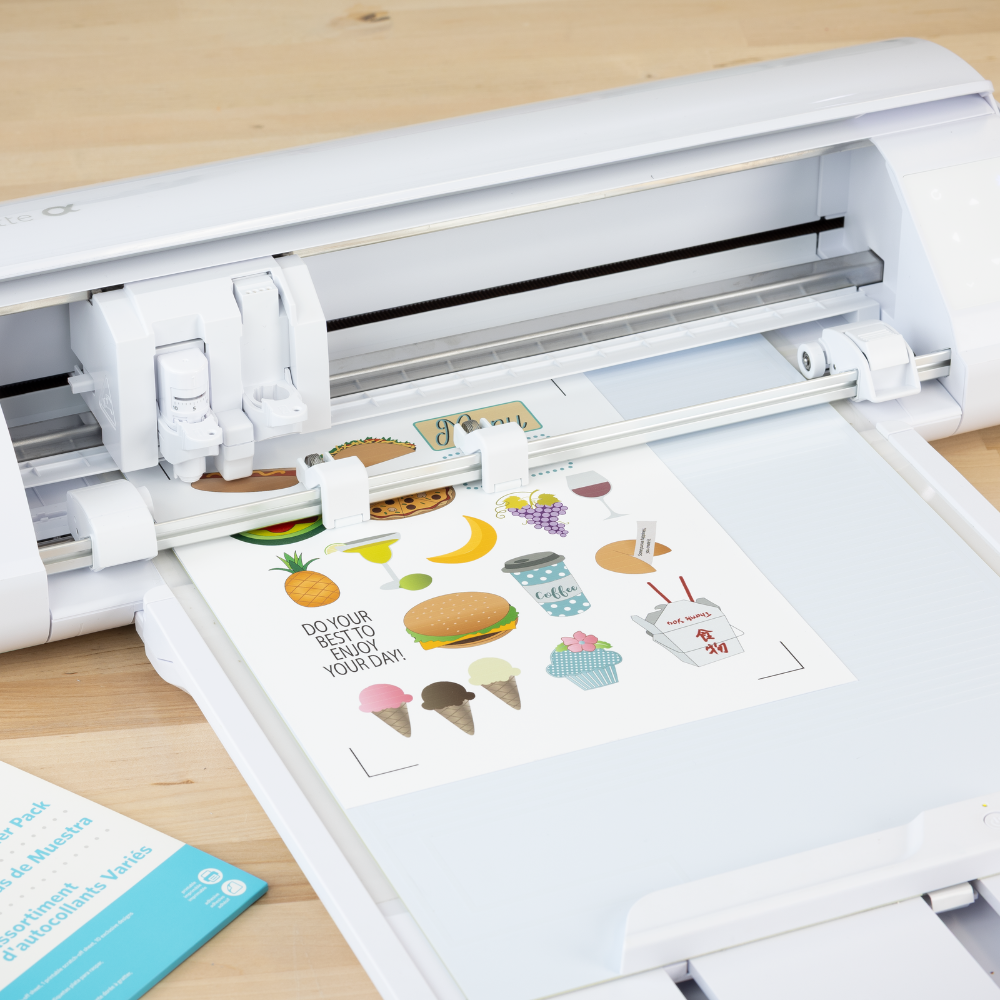

  • Stickers, create wall, car, floor- and window stickers, with the hexis vinyls.
  • Foil Stamping, use the optional Heat Pen to create foil designs on cardstock and faux leather.
  • Embossing, add a unique, three-dimensional texture to your projects with the optional Embossing Tool.
  • Sketching: Seamlessly combine cutting and drawing in one project with the optional Pen Holder (Type C).
  • Electrostatic Mat: This innovative mat holds delicate materials.

The Silhouette Cameo 5α includes:

  • AC Adapter/Power cable set
  • Cutting mat
  • AutoBlade
  • Blade adjustment tool
  • Roll Feeder
  • Silhouette Studio software® (download)
  • 100 exclusive designs (available with registration)
  • One-month subscription to Silhouette Design Store (available with registration)

The Silhouette Cameo 5 and the Silhouette Cameo 5 Alpha are both powerful cutting machines, but the Alpha version offers several key improvements that make it worth considering, especially for advanced users and professionals.

Specifications

Weight 8 kg
Dimensions 56,6 × 17,6 × 12,4 cm

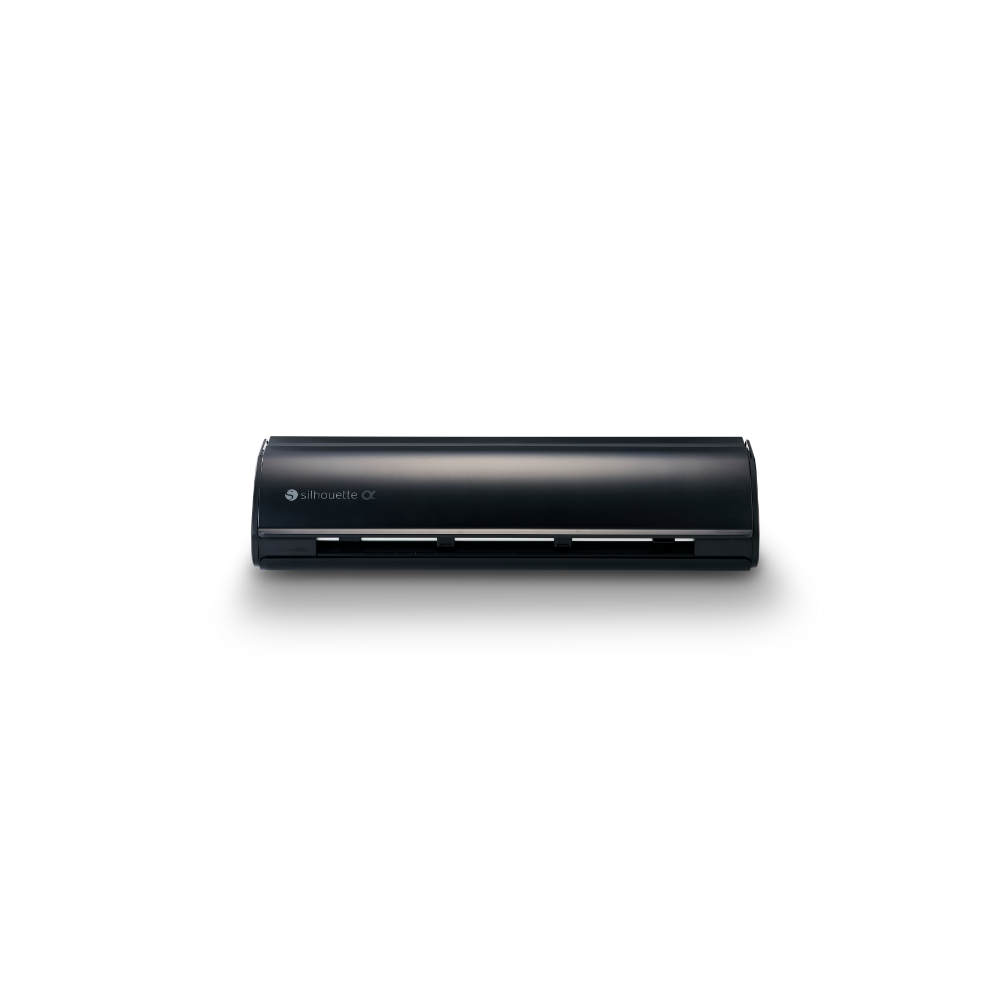

Color

, ,

Guaranteed Operating Area

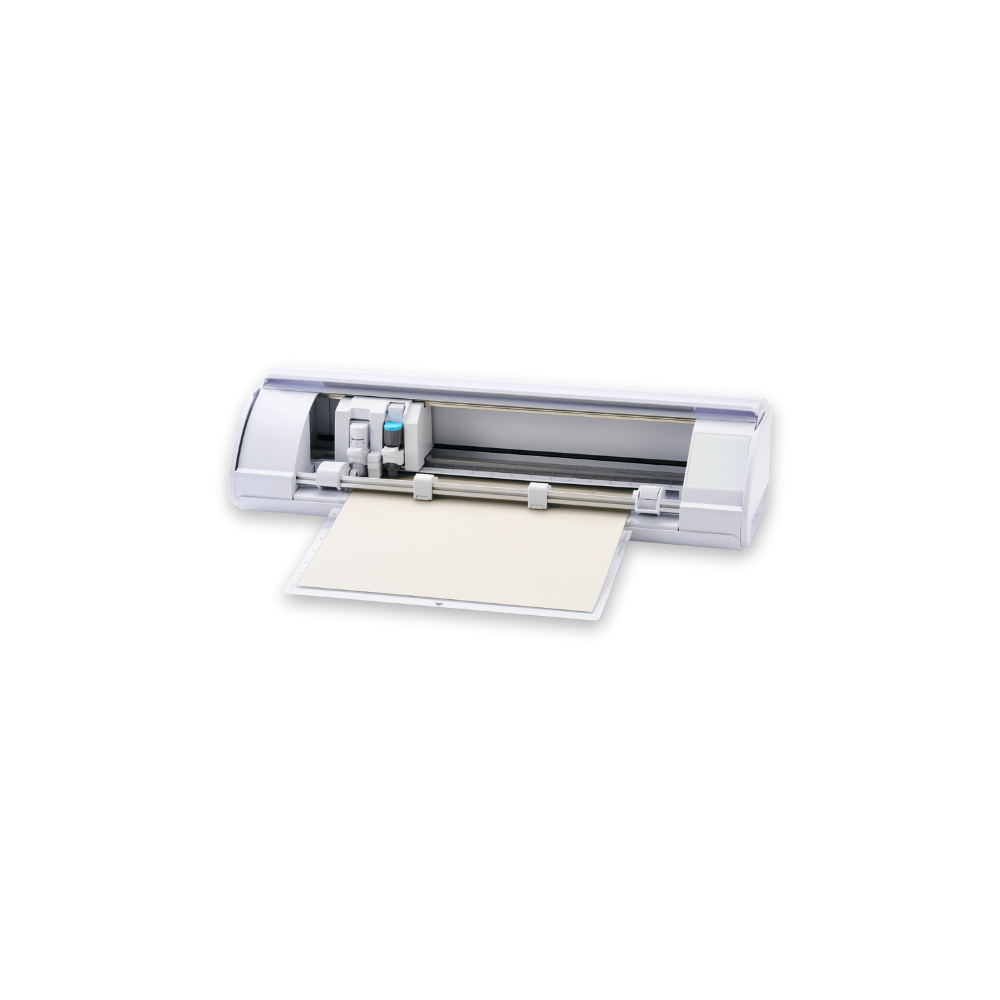

With a Cutting Mat:
30.5 cm x 61.0 cm (12 in. x 24 in.)

With lined material:
29.5 cm x 487.7 cm (11.6 in. x 16 ft.)

Maximum Material Thickness

3 mm (118.11 mils)

Maximum Cutting Length

16 ft.(487.7 cm)

Maximum Cutting Speed

1-10mm/s (1mm/s step), 10-300mm/s (10mm/s step)

Mechanical Resolution

0.00625mm

Programmable Resolution

0.05mm

Registration Mark Reading

Yes

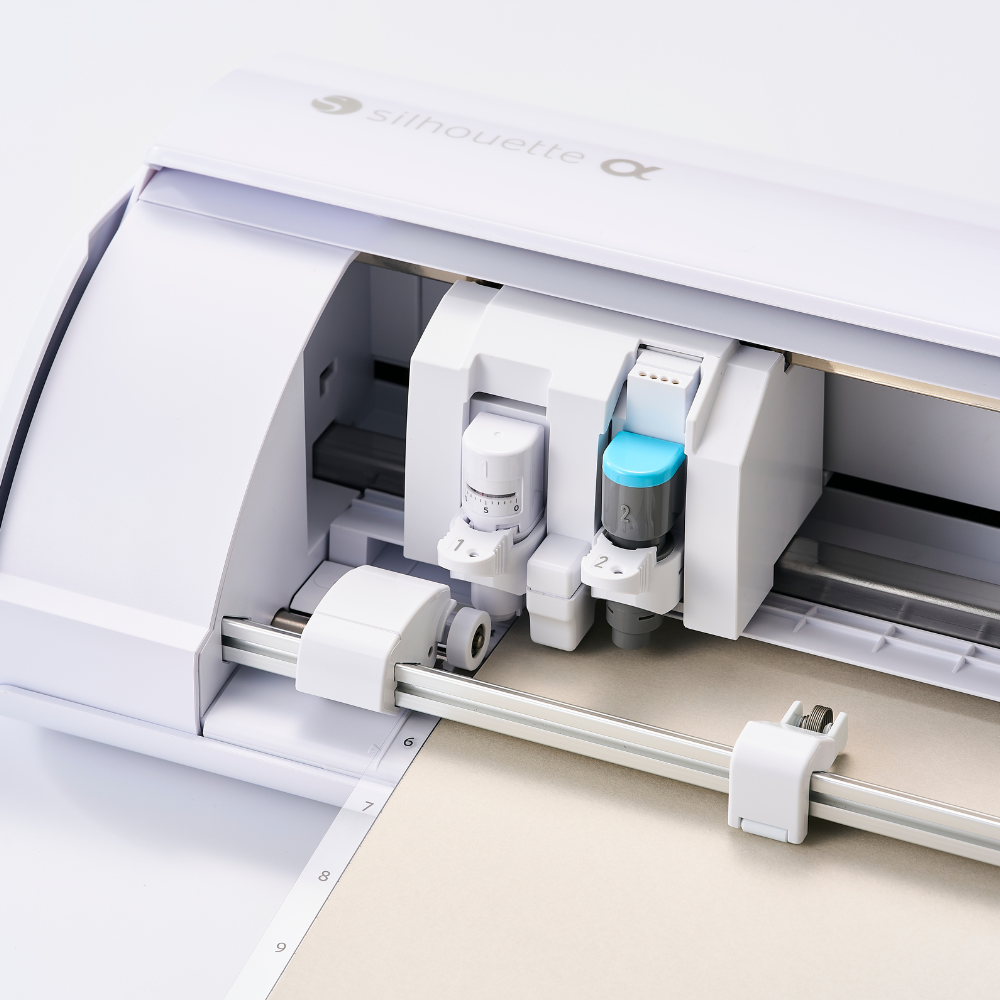

Number of Plunger Mountable

2

Automatic Adjust for Blades

Yes

Interfaces

10-35 ℃ , 35-75% R.H.(non-condensing)

Rated Power Supply

AC Adapter DC24 V/1.25A

Power Consumption

25W

Working Environment

10-35 ℃ , 35-75% R.H.(non-condensing)

Guaranteed Operating Environment

16-32 ℃ , 35-70% R.H.(non-condensing)

Unit Dimensions (W x D x H)

22.28 in. x 6.94 in. x 4.89 in.

Shipping Dimensions (W x D x H)

24.80 in. x 10.80 in. x 8.26 in. (63.0 cm x 27.3 cm x 21.0 cm)

Shipping Weight

13.80 lbs (6.26 kg)

FAQ

1. What's included?

  • Silhouette CAMEO® 5​α
  • AC Adapter/Power cable set
  • Cameo Cutting Mat – Standard Tack
  • AutoBlade
  • Silhouette Sketch Pens Adapter
  • Silhouette Studio® software (download)
  • 100 exclusive designs (available with registration)
    1-month Silhouette Design Store subscription (available with registration)
