Silhouette Cameo 5α PLUS – Matte Black


You save per piece

Description

The Silhouette CAMEO 5α is a versatile cutting machine for both beginners and experienced makers, capable of handling materials from heat transfer vinyl and cardstock to fabrics and foils, with a roll width of up to 380 mm. Its expandable loading width and Intelligent Path Technology ensure precise, tear-free cuts, even on ultra-thin paper. Beyond cutting and drawing, it supports embossing, foil stamping, and electrostatic mat projects. Quiet, reliable, and easy to use, it comes with Silhouette Studio® software for full design creation and access to the Silhouette Design Store.

Expand your creative horizons with the many possibilities of the CAMEO 5α.

  • Heat transfer vinyls, make creative designs on textiles and promotionals items MagiCut series.
  • Stickers, create wall, car, floor- and window stickers, with the hexis vinyls.
  • Foil Stamping, use the optional Heat Pen to create foil designs on cardstock and faux leather.
  • Embossing, add a unique, three-dimensional texture to your projects with the optional Embossing Tool.

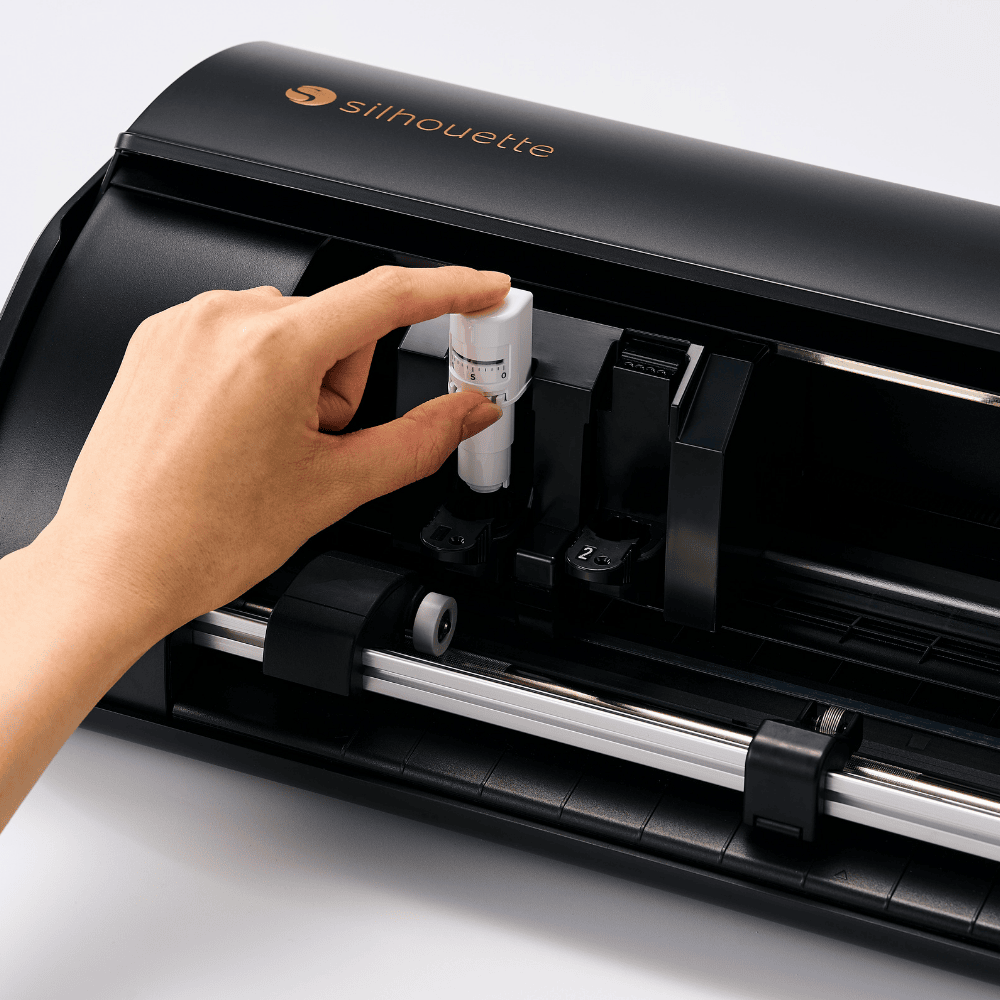

  • Sketching: Seamlessly combine cutting and drawing in one project with the optional Pen Holder (Type C).
  • Electrostatic Mat: This innovative mat holds delicate materials.

The Silhouette Cameo 5α includes:

  • AC Adapter/Power cable set
  • Cutting mat
  • AutoBlade
  • Blade adjustment tool

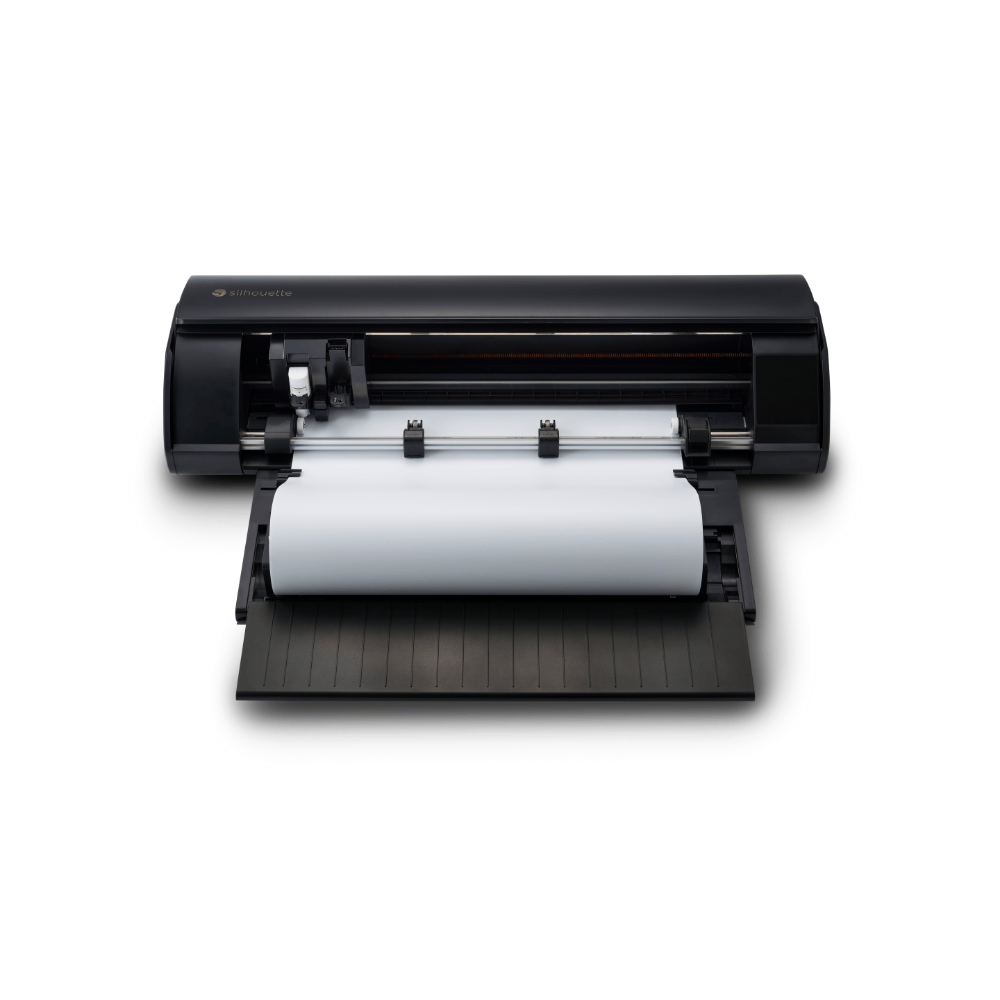

  • Roll Feeder
  • Silhouette Studio software® (download)
  • 100 exclusive designs (available with registration)
  • One-month subscription to Silhouette Design Store (available with registration)

The Silhouette Cameo 5 plus and the Silhouette Cameo 5α Plus are both powerful cutting machines, but the Alpha version offers several key improvements that make it worth considering, especially for advanced users and professionals.

Specifications

Weight 5,70 kg
Dimensions 64,2 × 17,6 × 12,4 cm
Cutting Area

37.1 cm x 38.1 cm (14.6 in. x 15 in.) — With a Cutting Mat
37.1 cm x 487.7 cm (14.6 in. x 16 ft.) — With lined material (when using Roll Feeder)

Maximum Material Thickness

3 mm (118.11 mils)

Maximum Cutting Speed

300 mm/s

Maximum Sketching Speed

400 mm/s

Registration Mark Reading

Yes

Four-point Registration Mark System

Yes

Number of Plunger Mountable

2

Automatic Adjust for AutoBlade(Type B)

Yes

Interfaces

USB 2.0 (FULL-speed) / Bluetooth®

Rated Power Supply

AC adapter DC 24V (1.25A)

Power Consumption

25 W

Working Environment

10–35 °C, 35–75 % RH (non-condensing)

Guaranteed Operating Environment

16–32 °C, 35–70 % RH (non-condensing)

Unit Dimensions

64.2 cm x 17.6 cm x 12.4 cm (25.28 in. x 6.94 in. x 4.89 in.)

Unit Weight

5.70 kg (12.7 lbs.)

Shipping Dimensions

77.0 cm x 29.5 cm x 21.6 cm (30.30 in. x 11.60 in. x 8.50 in.)

Shipping Weight

7.48 kg (16.50 lbs.)

Requires Silhouette Studio® software version

5.0.402 or higher

Minimum System Requirements

Windows 10 or later, macOS 13 or later

Safety Standard for Europe

IEC 62368-1: 2018

EMC (Electromagnetic Compatibility) for Europe

EN55032:2015+A11:2020+A1:2020,Class B
EN61000-3-2:2019
EN61000-3-3:2013+A1:2019
EN55035:2017+A1:2020

Machine features

Matless cutting capabilities
Power tool capability
Automatic tool detection

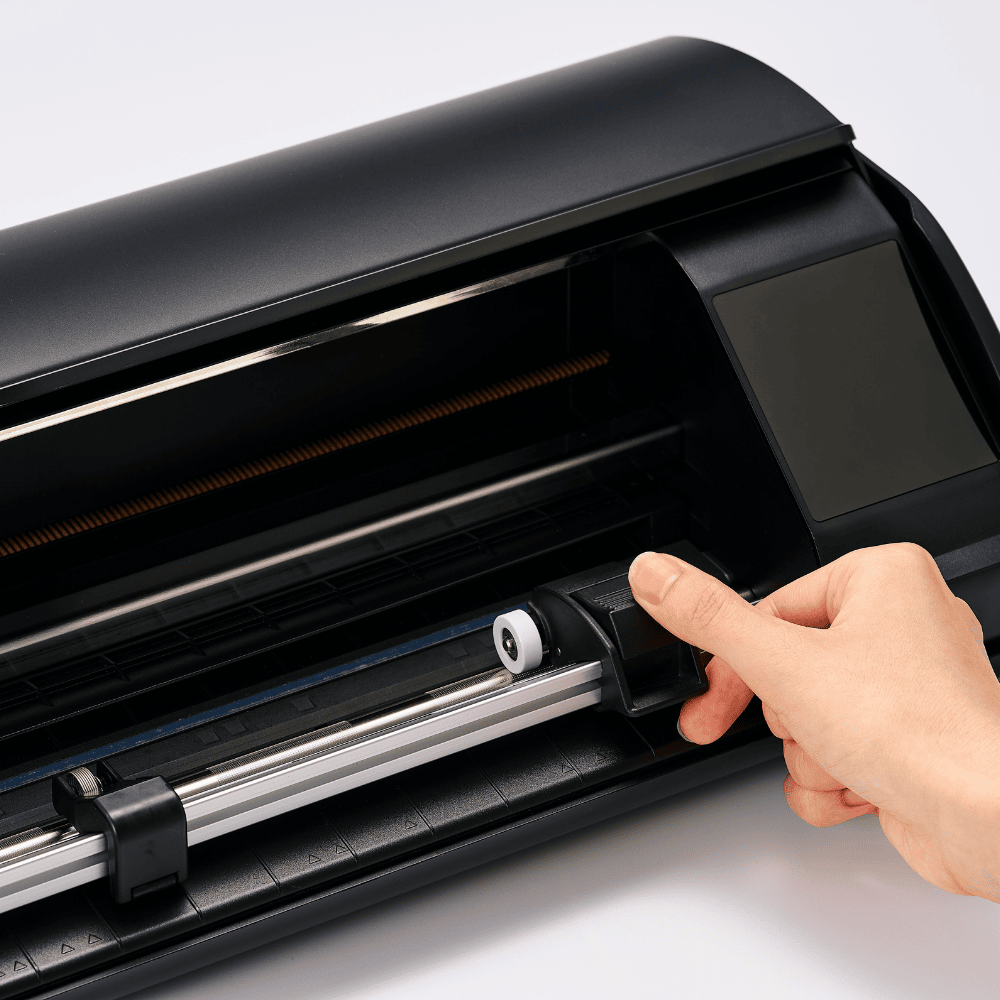

Easy-Adjust Pinch Rollers for smoother adjustment and improved visibility for accurate setup
Auto-cross cutting with the AutoBlade(Type B)
Quieter operation
Smooth opening lid architecture
Electrostatic mat (optional add-on accessory)
New reinforced roll feeder attachment (optional add-on accessory)
Support Roller attachment (optional add-on accessory)
Wireless cutting with Bluetooth® connectivity
Four-point registration mark system for refined Print & Cut precision
PixScan™ compatible
Driven by Silhouette Studio® giving you limitless design options to customize your projects

FAQ

1. What's included?

  • AC Adapter/Power cable set
  • Cutting Mat 38.1 cm (15 inch) – Standart Tack
  • AutoBlade (Type B)
  • Skech Pens Adapter
  • Blade adjustment tool
  • Safety Sheet
  • Silhouette Studio® software (download)
  • User’s Manual (download)
  • 100 exclusive designs (available with registration)
  • 1-month Silhouette Design Store subscription (available
  • with registration)
