Graphtec CE8000-40
€1.395,00
You save
per piece
SKU: 150250
In stock
- Order by 4:00 PM for Next-Day Delivery*
- Pricing Agreements for Every Customer
- Flexible & Secure Payment Options
- Rated 4.7/5.0 for Friendly, Expert Service
- 35+ Years of Proven Industry Expertise
Description

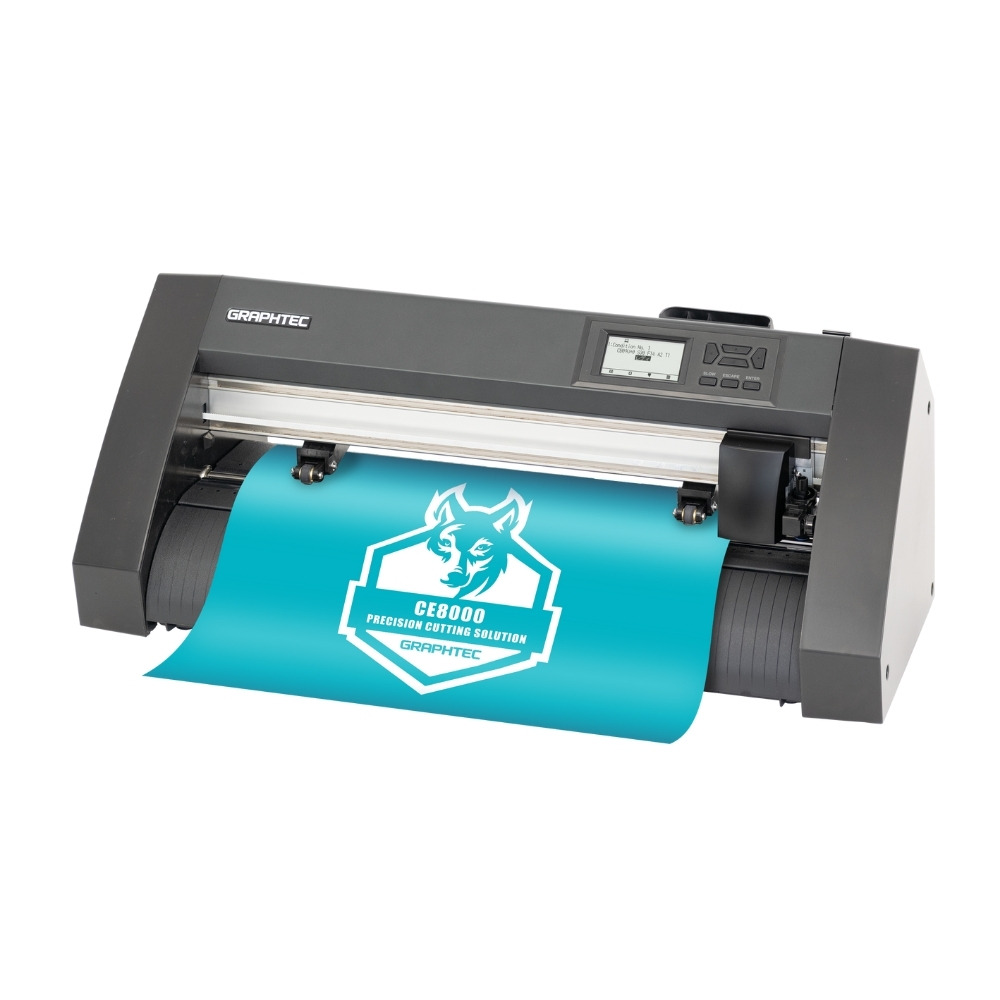

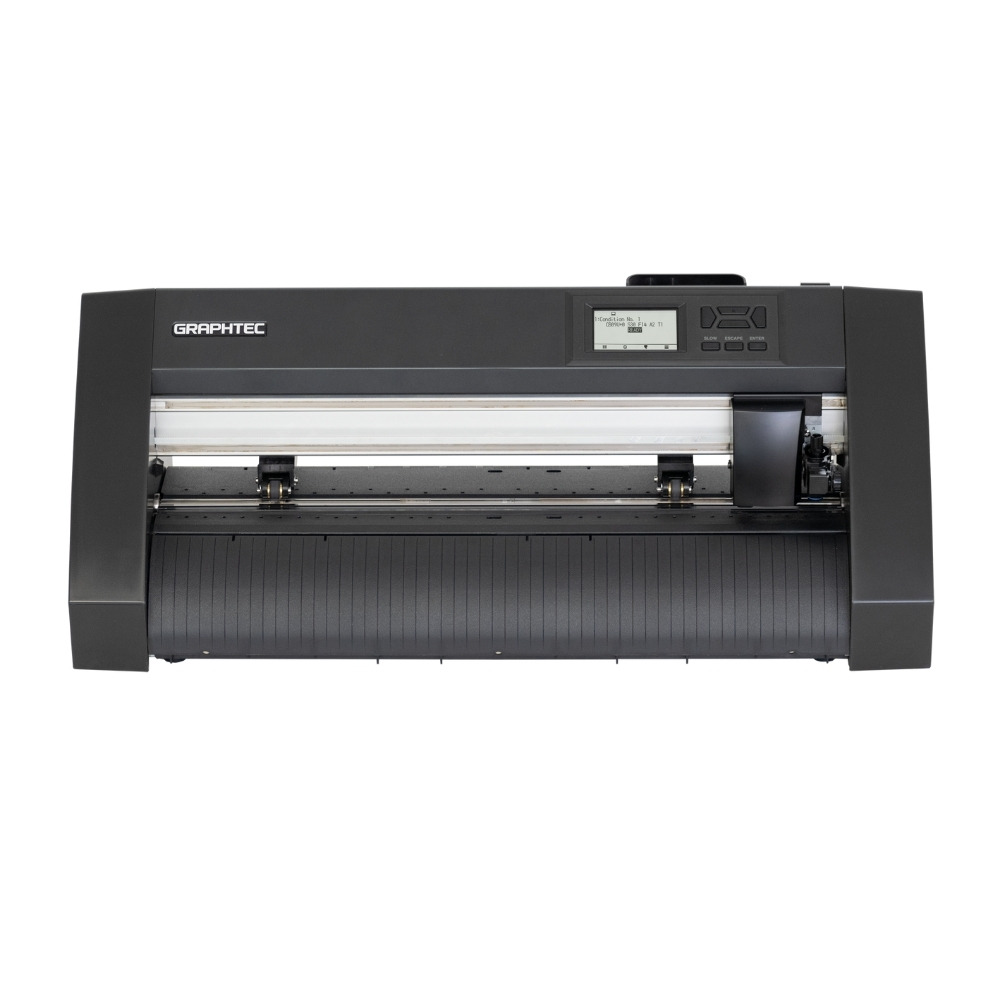

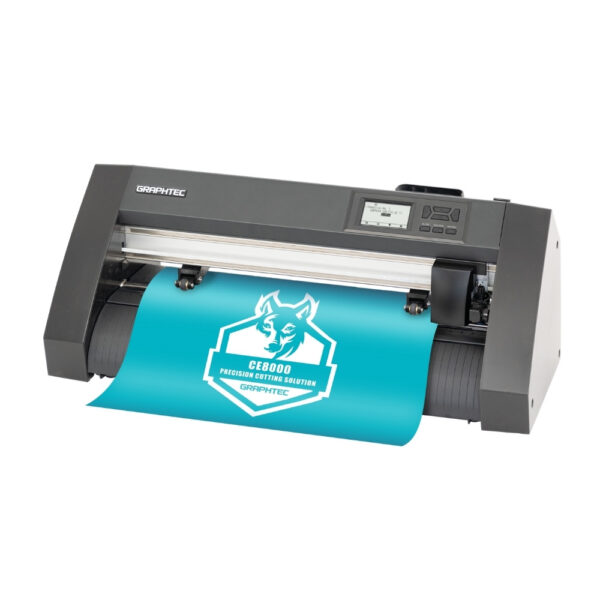

The Graphtec CE-8000-40 is a compact desktop cutting plotter that takes up very little space, making it perfect for small studios, home offices, or any workspace with limited room. The Graphtec CE-8000 Series are high-performance cutting plotters designed for precision, speed, and versatility. With features such as wireless LAN connectivity, a responsive touch panel, and an advanced automatic media feeding system (ASF), it offers excellent efficiency and ease of use. The durable construction and refined electronic components ensure a long service life and consistent performance. Its intuitive interface and clear menu structure make operation smooth and user-friendly.
Key features
- Wireless LAN Connectivity – Flexible installation and seamless operation without cables.
- Redesigned Blade Holder – Magnetic base and sliding stopper allow for quick, precise tool changes.

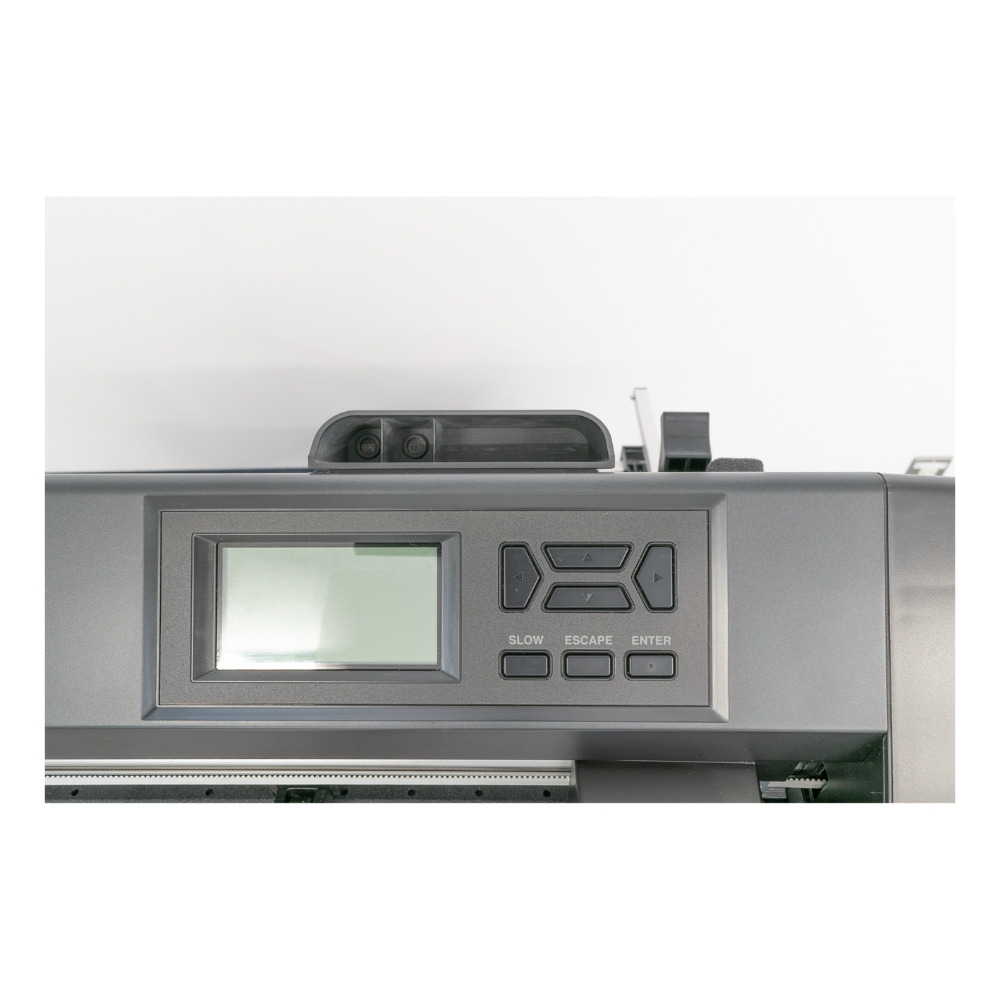

- Touch Panel with Mechanical Buttons – Supports Blind Touch operation for efficient, eyes-free control.
- Media Assistant System – Integrated sensor and fan automatically support smooth material feeding.
- Enhanced Push Roller Design – Adjustable adhesive force for stable material feeding and accurate cutting.
Important
The CE-8000-40 has a maximum cutting width of 40 cm, is attractively priced, and takes up very little space.
The CE-8000-60 has a maximum cutting width of 60 cm, allowing it to handle wider vinyl rolls (61 cm) or heat transfer (flex) film (50 cm). Both plotters are highly robust, durable, and provide excellent long-term value for the investment.
Specifications
| Weight | 18 kg |
|---|---|
| Dimensions | 52 × 113 × 45 cm |
| Model | |
| Width | |
| Cutter type | Grit rolling type |
| Drive system | Digital servo drive |
| Max. cutting area (W x L) (*1) | 375mm × 50ｍ |
| Accuracy guaranteed cutting area (W x L) when using basket | 355mm × 2m |
| Mountable media width | Min. 50mm |
| Mountable roll media weight | 5kg |
| Number of push rollers | 2 |
| Max. cutting speed | 90cm/s (45°direction) |
| Max. acceleration | 21.2m/s2 (45°direction) |
| Cutting force | 4.41N (450gf) |
| Min. Character size | Alphanumeric: approx. 5mm (varies depending on font and media) |
| Mechanical step size | 0.005mm |
| Programmable step size | GP-GL: 0.1 / 0.05 / 0.025 / 0.01mm |
| Repeatability | Max. 0.1mm in plot up to 2m (Excluding media expansion and contraction) |
| Installable number of tools | 1 |
| Blade types | Supersteel |
| Pen types | Oil-based ballpoint pen, Water-based fiber-tip pen |
| Media types | Max. 0.25mm thickness Marking film (PVC / fluorescent / reflective) |
| Interface | USB2.0 (Full Speed), Wireless LAN IEEE 802.11b/g/n, Ethernet 10 BASE-T/100BASE-TX (*3) |
| Buffer memory | 2MB |
| Command sets | GP-GL / HP-GL™ (Set by command or auto-detect) |
| LCD display | Touch panel (240-dot × 128-dot) |
| Power source | AC100-120V, AC200-240V, 50/60Hz (auto-switchover) |
| Operating environment | 10 – 35℃ , 35 – 75％ R.H. (non-condensing) |
| Accuracy guaranteed environment | 16 – 32℃ , 35 – 70％ R.H. (non-condensing) |
| External dimensions (W x D x H) including stand | 677 x 289 x 266mm |
| Supported software (*3) | Graphtec Studio 2, Cutting Master 5, Windows Driver |
| * | 1*. Operated with Graphtec specified cutting condition and media. For long-length cutting, the basket is used. |
FAQ
1. Can the Graphtec CE8000-40 Cutting Plotter also be connected to my computer via WiFi?Yes, the Graphtec CE8000-40 now features a user-friendly WiFi module, allowing for seamless wireless operation. For wired connectivity, the CE8000 series offers a convenient USB option.
Yes, the Graphtec CE8000-40 now features a user-friendly WiFi module, allowing for seamless wireless operation. For wired connectivity, the CE8000 series offers a convenient USB option.
2. What software options are there to operate the Graphtec CE8000-40?The Graphtec CE8000 series cutting plotters offer several software options to operate from:
Cutting Master 5
This is a free plug-in software that can be used on both Windows and Mac computers. It is a RIP software that allows the user to send data to the cutting plotter, including all necessary settings, directly from CorelDraw and Adobe Illustrator.
Graphtec Studio 2
This is a free software program, available for Windows and Mac, that combines many design and edit possibilities and all necessary features for every cutting job. It works with Silhouette Studio files, ideal for those customers stepping up from the Silhouette Cameo cutters.
Both Cutting Master 5 and Graphtec Studio 2 can be downloaded for free from the Graphtec website: https://www.graphteccorp.com/support/software/cutting/
The Graphtec CE8000 series cutting plotters offer several software options to operate from:
Cutting Master 5
This is a free plug-in software that can be used on both Windows and Mac computers. It is a RIP software that allows the user to send data to the cutting plotter, including all necessary settings, directly from CorelDraw and Adobe Illustrator.
Graphtec Studio 2
This is a free software program, available for Windows and Mac, that combines many design and edit possibilities and all necessary features for every cutting job. It works with Silhouette Studio files, ideal for those customers stepping up from the Silhouette Cameo cutters.
Both Cutting Master 5 and Graphtec Studio 2 can be downloaded for free from the Graphtec website: https://www.graphteccorp.com/support/software/cutting/
3. Can the Graphtec CE8000-40 be used for Print & Cut operation?Yes it can very well in fact. With the Print & Cut process the Graphtec CE8000 series can cut the contour from a print made on special media like TheMagicTouch transferpapers for garment decoration, printable vinyl for stickers and much more. From the cutting software (Cutting Master 5 or Graphtec Studio 2) the design is send to the printer, with the addition of markers which are printed along side the design. Once the printed media is loaded into the Graphtec CE8000, it scans the markers and calculating from their position it is capable of cutting the contour of the design on exactly the correct position. The CE8000 series offers many possibilities with the set-up of the cutting data that help to make full use of the media.
Yes it can very well in fact. With the Print & Cut process the Graphtec CE8000 series can cut the contour from a print made on special media like TheMagicTouch transferpapers for garment decoration, printable vinyl for stickers and much more. From the cutting software (Cutting Master 5 or Graphtec Studio 2) the design is send to the printer, with the addition of markers which are printed along side the design. Once the printed media is loaded into the Graphtec CE8000, it scans the markers and calculating from their position it is capable of cutting the contour of the design on exactly the correct position. The CE8000 series offers many possibilities with the set-up of the cutting data that help to make full use of the media.
4. Is the Graphtec CE8000 series a good step up from my Silhouette Cameo Pro?Yes indeed. The Graphtec is a professional cutting plotter that will make your cutting jobs a lot easier and faster for you and it is the ideal step up if the number of cutting jobs you get is growing. It will offer you a lot faster plotting speed, higher precision, more efficient media usage and therefore shorter weeding time.
Yes indeed. The Graphtec is a professional cutting plotter that will make your cutting jobs a lot easier and faster for you and it is the ideal step up if the number of cutting jobs you get is growing. It will offer you a lot faster plotting speed, higher precision, more efficient media usage and therefore shorter weeding time.

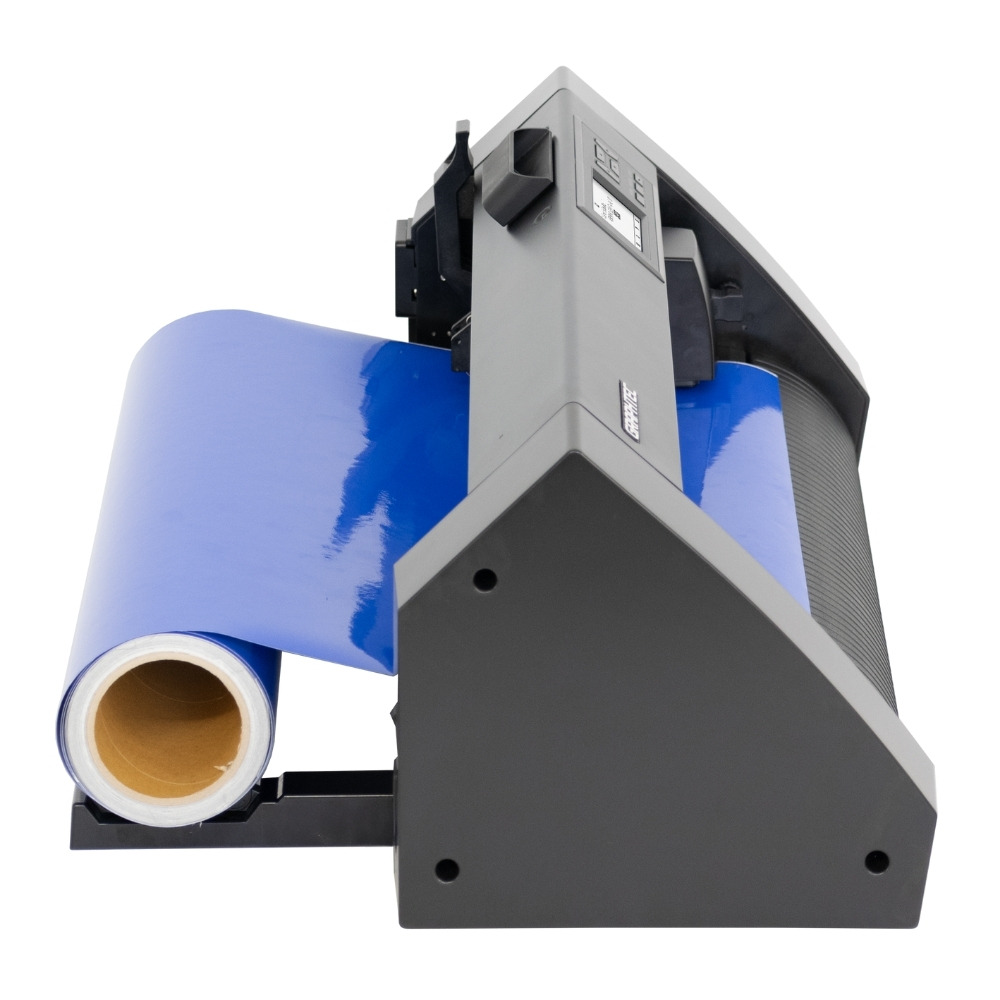

5. Is the stand included with the Graphtec CE8000-40?The Graphtec CE8000-40 with its smaller size and footprint comes with a Roll Media stocker instead of a stand, as this small model is more suited for use on a top off a desk or table.
The Graphtec CE8000-40 with its smaller size and footprint comes with a Roll Media stocker instead of a stand, as this small model is more suited for use on a top off a desk or table.
6. Which one is right for me: The Graphtec CE8000-40, the CE8000-60 or the CE8000-130?The biggest difference between these three models is the maximum cutting width. Heat transfer vinyls are available 305 and 500mm width, Vinyls are available in 305 and 610mm en 123mm width.
On the CE8000-40 the maximum cutting width is 375mm
On the CE8000-60 the maximum cutting width is 603mm
On the CE8000-130 the maximum cutting width is 1372mm
The biggest difference between these three models is the maximum cutting width. Heat transfer vinyls are available 305 and 500mm width, Vinyls are available in 305 and 610mm en 123mm width.
On the CE8000-40 the maximum cutting width is 375mm
On the CE8000-60 the maximum cutting width is 603mm
On the CE8000-130 the maximum cutting width is 1372mm
